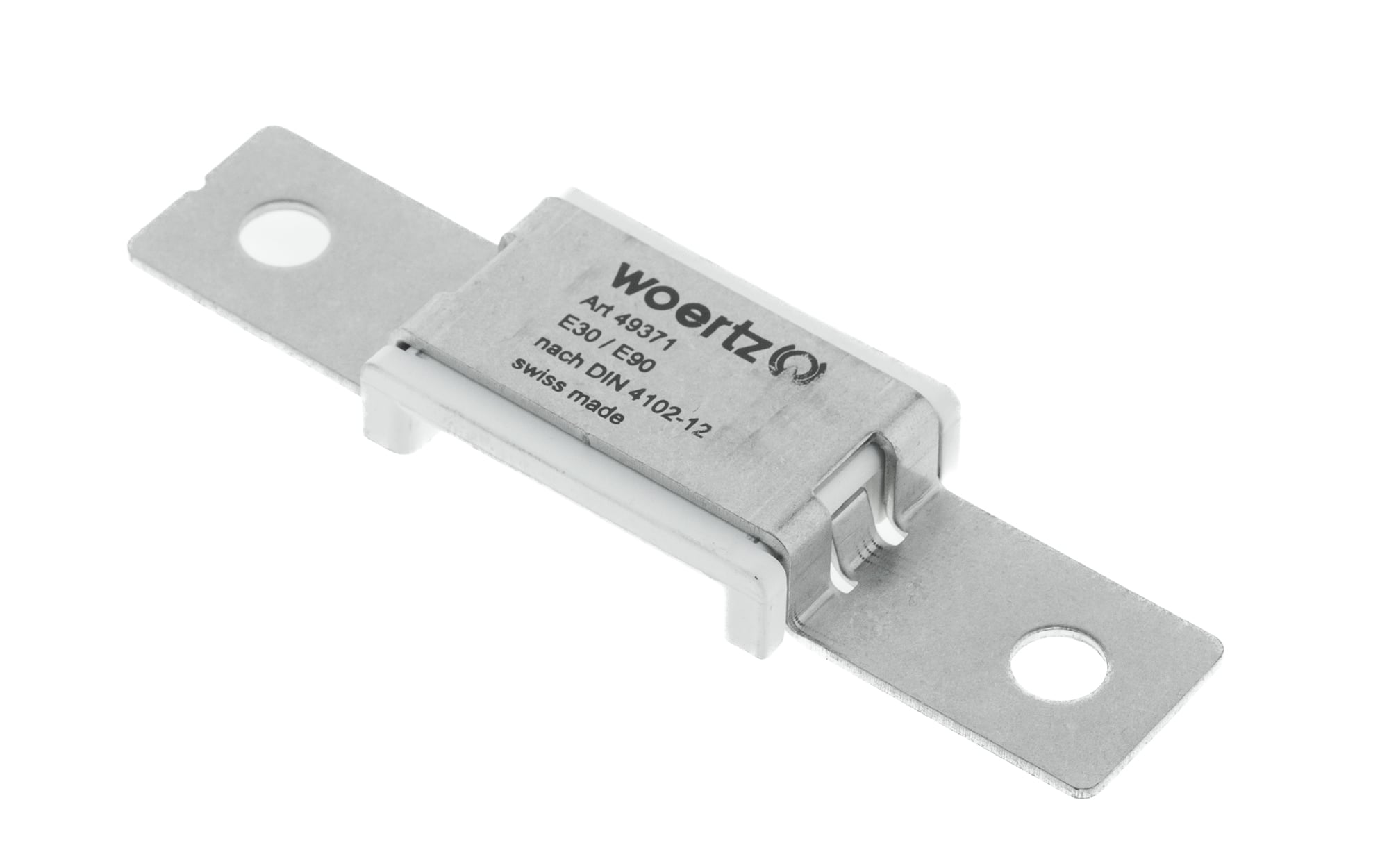

Cable fastening clamp 5G2.5/4.0mm2 mm2 E90
Article number: 49371
Mounting distance: 800mm
Product accessories
Flat cable Woertz FE180/E30/E90 5x2.50mm 2 FR/LS0H orange 3LNPE (rodent repellent)Fire protection cable with non-critical behavior (according to VKF guideline 14-15) for use in horizontal and vertical escape routes. Applicable in public buildings and facilities such as hospitals, hotels, offices, museums or other commercial buildings (KBOB). Also recommended for facilities with an increasing number of people in ever tighter spaces such as airports, train stations (above and below ground) or shopping malls (KBOB). Within the Woertz fire protection cabling systems also ideally suited for the high demands of infrastructure buildings such as tunnels, underpasses, parking garages or subway stations.
| Article number | 48350OR |
| Base Unit | Meter |
| availability | Delivery according to agreement |
| Construction (mm²) | 5x2.5 |
| Halogen free | Yes |
| International designation | N1ZZ1H2-U |
| Reaction to fire classification | B2ca s1 d0 a1 |
| Sheath color | Orange |
Flat cable Woertz FE180/E30/E90 5x4.00mm 2 FR/LS0H orange 3LNPE (rodent repellent)Fire protection cable with non-critical behavior (according to VKF guideline 14-15) for use in horizontal and vertical escape routes. Applicable in public buildings and facilities such as hospitals, hotels, offices, museums or other commercial buildings (KBOB). Also recommended for facilities with an increasing number of people in ever tighter spaces such as airports, train stations (above and below ground) or shopping malls (KBOB). Within the Woertz fire protection cabling systems also ideally suited for the high demands of infrastructure buildings such as tunnels, underpasses, parking garages or subway stations.
| Article number | 48650OR |
| Base Unit | Meter |
| availability | Delivery in 3 weeks |
| Construction (mm²) | 5x4.0 |
| Halogen free | Yes |
| International designation | N1ZZ1H2-U |
| Reaction to fire classification | B2ca s1 d0 a1 |
| Sheath color | Orange |
Flat cable Woertz FE180/E30/E90 5x6.00mm 2 FR/LS0H orange 3LNPE (rodent repellent)Fire protection cable with non-critical behavior (according to VKF guideline 14-15) for use in horizontal and vertical escape routes. Applicable in public buildings and facilities such as hospitals, hotels, offices, museums or other commercial buildings (KBOB). Also recommended for facilities with an increasing number of people in ever tighter spaces such as airports, train stations (above and below ground) or shopping malls (KBOB). Within the Woertz fire protection cabling systems also ideally suited for the high demands of infrastructure buildings such as tunnels, underpasses, parking garages or subway stations.
| Article number | 48750OR |
| Base Unit | Meter |
| availability | Delivery according to agreement |
| Construction (mm²) | 5x6 |
| Halogen free | Yes |
| International designation | N1ZZ1H2-U |
| Reaction to fire classification | B2ca s1 d0 a1 |
| Sheath color | Orange |
This product is a member of the following product systems
40200
Woertz Fire Safety System FE180 E30/E90 5G2.5 mm² for power supply of safety-relevant elements, such as emergency and escape route lighting, smoke extraction systems or fire department elevators.
40500
Woertz fire safety system FE180 E30/E90 5G4 mm² for power supply of safety-relevant elements, such as emergency and escape route lighting, smoke extraction systems or fire department elevators.
40700
Woertz fire safety system FE180 E30/E90 5G6 mm² for power supply of safety-relevant elements, such as emergency and escape route lighting, smoke extraction systems or fire department elevators.
