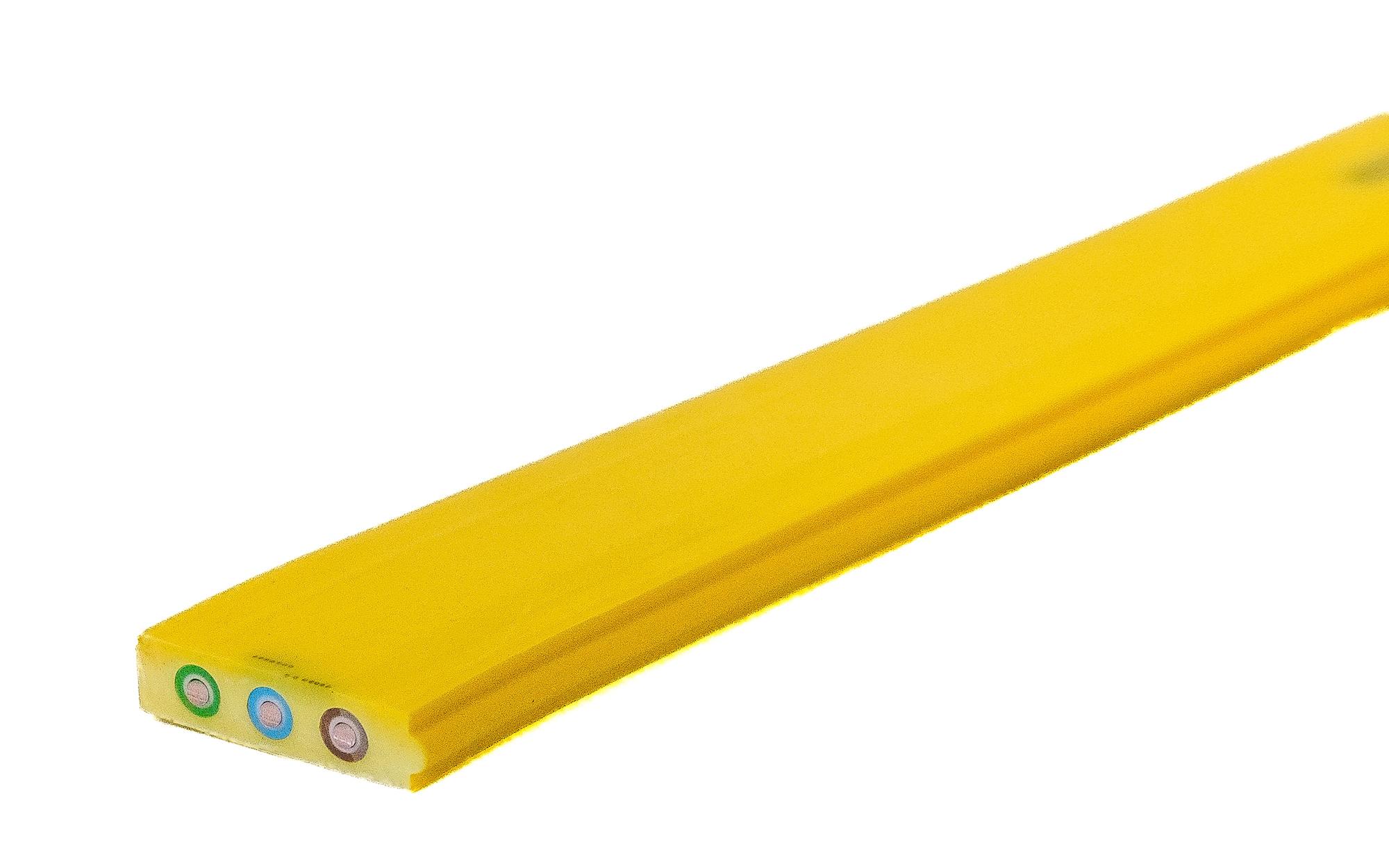

Flat cable FE180/E90 3G2.5² HF YE

Article number: 48250GE

Price on demand

Flat cable Woertz FE180/E90 0.6/1.0kV, 3x2.5mm², halogen-free, HFFR, yellow, LNPE, reaction to fire class: B2ca s1a d0 a1, rodent repellent

Base Unit	Meter
availability	Levering etter avtale
Weight	265 g
Construction	3x2.5 mm²
Halogen free	Ja
International designation	N1ZZ1H2-U
Reaction to fire classification	B2ca s1a d0 a1
Fire behavior	Kabler med ikke-kritisk oppførsel (i henhold til VKF 14-15)
Sheath color	Gul
Rodent protection	gnagermiddel

Tender text

Flat cable FE180/E90 3G2.5² HF YE (48250GE): Flat cable Woertz FE180/E90 0.6/1.0kV, 3x2.5mm², halogen-free, HFFR, yellow, LNPE, reaction to fire class: B2ca s1a d0 a1, rodent repellent

Copy

Product data sheet
48250GE - Flat cable FE180-E90 3G2.5² HF YE.pdf

Files
Declaration of Conformity	Umwelterklärung Flachkabel.pdf
Certificate	VDE_40047623_300_Certi_PIM.pdf
Declaration of Conformity	rohs_and_reachV01.pdf
Certificate	VKF_Anerkennung_031491_031540_de_fr_Certi.pdf
Declaration of performance	Leistungserklärung_Woertz Flachkabel FE180 Nr.500_B2ca.PDF

Characteristics
Base Unit	Meter
availability	Levering op afspraak
group	0170000
Packaging unit	1000 m
country of origin	CH
Customs tariff number	8544.4992
Weight	265 g
Copper weight (g)	72 g

Technical data
Construction	3x2.5 mm²
Dimensions width x height (mm)	24x6 mm
Halogen free	Ja
Cable type	Platte kabel voor brandveiligheid
International designation	N1ZZ1H2-U
Reaction to fire classification	B2ca s1a d0 a1
Fire behavior	Kabels met niet-kritisch gedrag (volgens VKF 14-15)
Cross section (mm²)	02. Mai mm²
Copper conductor	Draad KL1 EN60228
Conductor resistance (ohm/km)	7,41 ohm/km
cores insulation	Vlamvertragend, bestand tegen hoge temperaturen
Cores colors	bruin, groen/geel, blauw
Sheat insulation	Polyolefine vlamvertrager
Sheath color	Geel
Rodent protection	knaagdierafweermiddel
Longitudinal watertightness	< 1 m/14 dagen EN60794-1-2-F5B
Operating Temperature	-25 tot 90 °C
Installation temperature min.	5 °C
Nominal voltage (VAC)	600/1000 VAC
Test voltage	4 kV/50Hz
Fire load (kWh/m)	0,86
Halogen free acc. to	IEC/EN60754-1/2
Flame retardant according to	IEC/EN60332-1-2
Minimal smoke emision acc. to	IEC/EN 61034-2
Insulation integrity	FE180 (IEC 60331) / PH120 (EN50200)

This product is a member of the following product systems

FE180 E30/E90 3G2,5 mm²

3000

Woertz brandbeveiligingssysteem FE180 E30/E90 3G2,5 mm² voor de voeding van veiligheidsrelevante elementen, zoals nood- en vluchtwegverlichting, rookafvoersystemen of brandweerliften.
