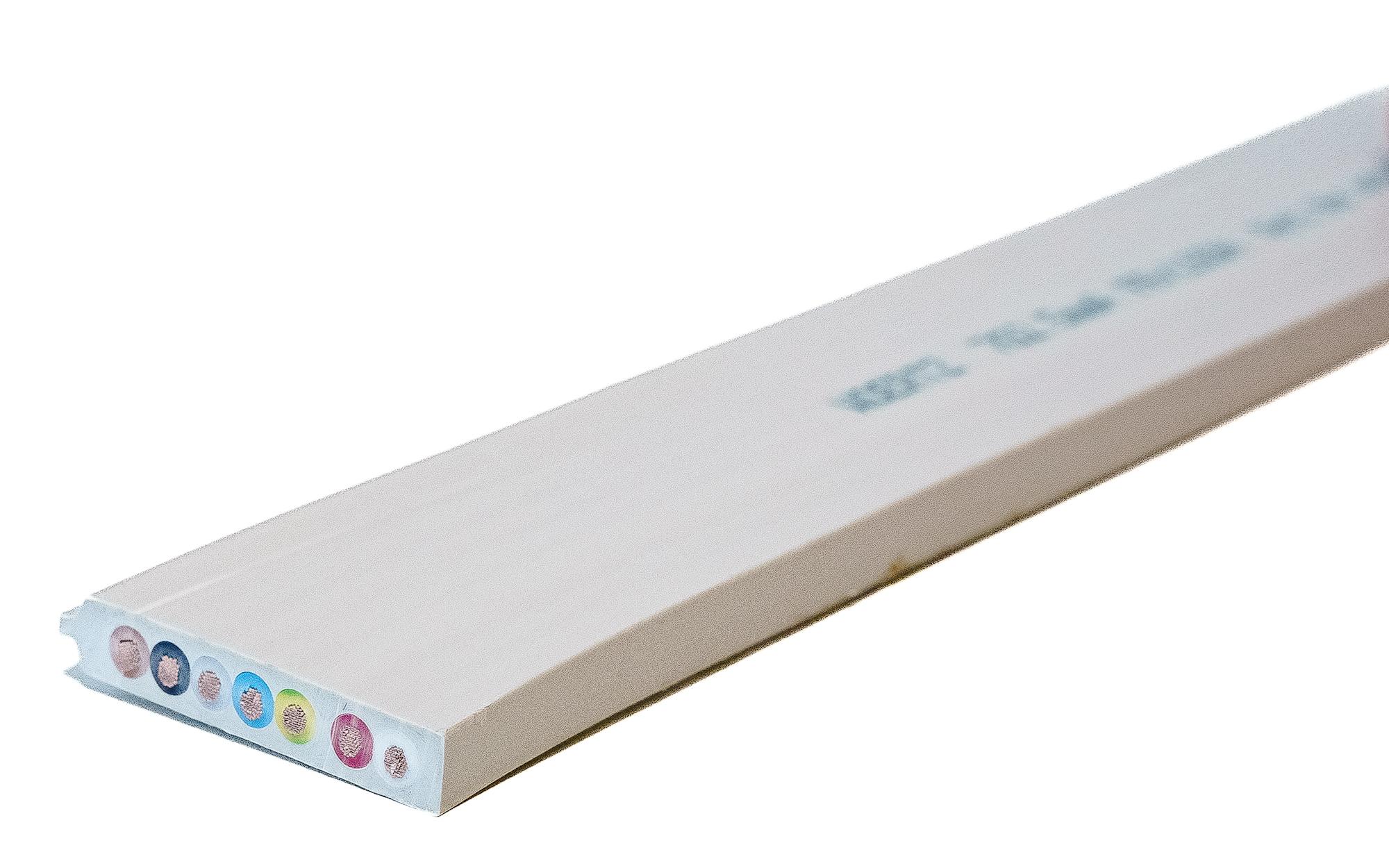

Flat cable 7G2.5² HF GY

Flat cable 7G2.5² HF GY

Article number: 49601
ELDAS® number: 113298780
Price on demand
Flat cable Woertz 0.6/1.0kV, 7x2.5mm², for piercing contact in accordance with EN 60998-2-3, halogen-free, FRNC/LSOH, light gray, wires: brown, black, grey, blue, red, white, reaction to fire class: B2ca s1a d0 a1
Base Unit Meter
availability Levering op afspraak
Weight 401 g
Construction 7x2.5 mm²
Halogen free Ja
International designation N1Z1Z1H2-K
Reaction to fire classification B2ca s1a d0 a1
Fire behavior Kabels met niet-kritisch gedrag (volgens VKF 14-15)
Sheath color Lichtgrijs
Tender text
Flat cable 7G2.5² HF GY (49601): Flat cable Woertz 0.6/1.0kV, 7x2.5mm², for piercing contact in accordance with EN 60998-2-3, halogen-free, FRNC/LSOH, light gray, wires: brown, black, grey, blue, red, white, reaction to fire class: B2ca s1a d0 a1
Copy
Characteristics
Base Unit Mètre
availability Livraison sur rendez-vous
EAN Code 7611718241512
group 0170000
Packaging unit -
country of origin CH
Customs tariff number 8544.4992
Weight 401 g
Copper weight (g) 168 g
Technical data
Construction 7x2.5 mm²
Dimensions width x height (mm) 35x6 mm
Halogen free Oui
Cable type Câbles plats sans halogène
International designation N1Z1Z1H2-K
Reaction to fire classification B2ca s1a d0 a1
Fire behavior Câbles à comportement non critique (selon AEAI 14-15)
Cross section (mm²) 4 mm²
Copper conductor Étamé, fils fins KL5 EN60228
Conductor resistance (ohm/km) 5,09 ohm/km
cores insulation Polyoléfine ignifugée
Cores colors marron,noir,gris,bleu,vert/jaune,rouge,blanc
Sheat insulation Polyoléfine ignifugée
Sheath color Gris clair
Minimum bending radius 6xH
Operating Temperature -25 à 90 °C
Installation temperature min. 5 °C
Nominal voltage (VAC) 600/1000 VAC
Test voltage 4 kV/50Hz
Fire load (kWh/m) 1,09
Halogen free acc. to IEC/EN60754-1/2
Flame retardant according to IEC/EN60332-1-2
Minimal smoke emision acc. to IEC/EN 61034-2
Low fire propagation acc. To IEC/EN 60332-3-24

Product accessories

Brides de câble Woertz Câble plat combi/power/Dali/7x<(>,<)> PA, gris, 1 fixation.
Article number 49731
ELDAS® number 120008107
Base Unit Piece
availability available from stock
Dimensions length x width x height (mm) 52x10x10
Weight 1,900 g
Price on demand
Brides de câble Woertz Câble plat E90 pour installation montante 23- 37/6-8mm. En acier inoxidable V4A, rouleaux en isolation céramic
Article number 49386 E90
ELDAS® number 120013007
Base Unit Piece
availability Delivery in 4 weeks
Dimensions length x width x height (mm) 91.5x71.5x48
Weight 0,090 kg
Price on demand
Cisaille pour câbles plats Woertz jusqu'à 5x6 mm² (avec un effort plus important jusqu'à 5x16 mm²)
Article number 49935
Base Unit Piece
availability available from stock
Dimensions length x width x height (mm) 24.5
Weight 475,23
Price on demand
Pièce d'extrémité Woertz, câble plat 35x6mm, 7G2.5/7G4mm², transparent, polycarbonate, sans halogéne, IP65
Article number 49620
ELDAS® number 150901137
Base Unit Piece
availability Delivery in 4 weeks
Weight 32 g
Price on demand
Ruban isolant pour câble plat 50mmx1m, pour l’isolation correcte des trous de perçage des boîtes de connexion, par exemple lors du déplacement ou du démontage, résistant aux intempéries, auto- vulcanisant à froid.
Article number 49632
ELDAS® number 150901147
Base Unit Meter
availability available from stock
Weight 106 g
Price on demand
