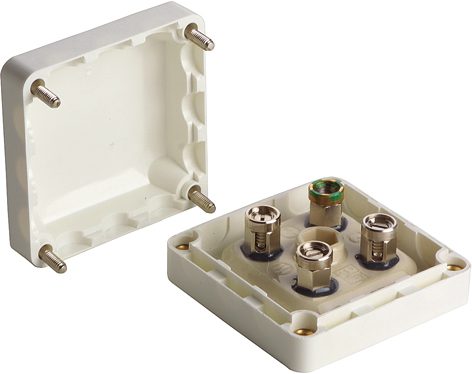

Junction box, 50x50 mm, 4x1.5 mm²

Junction box, 50x50 mm, 4x1.5 mm²

Article number: 2974C
Eldas number: 150034007
Price on demand
Thermoset, white, with terminals 3P PE
Base Unit Piece
Dimensions length x width x height (mm) 50x50x23 mm
availability Delivery according to agreement
Weight (g) 63 g
Tender text
Junction box, 50x50 mm, 4x1.5 mm² (2974C): thermosetting material white
Copy
Files
Declaration of Conformity
Characteristics
Base Unit Piece
availability Delivery according to agreement
EAN Code 7611718204081
group 167000
Packaging unit 10
country of origin CH
Customs tariff number 8536.9080
Weight (g) 63 g
Technical data
Dimensions length x width x height (mm) 50x50x23 mm
Cross section (mm²) 4x1.5 mm²
Design data
Mounting holes Ø (mm) 4.5 in der Mitte mm
Nominal data 500V/10A

This product is a member of the following product systems

Plastic junction boxes up to 4x1.5 mm²
Plastic junction boxes up to 4x1.5 mm²
1
  • for dry installations only
  • two-piece housing with pre-marked knockouts
  • With one screw terminals, with anti-spread ring, for continuous conductors, made of nickel-plated brass. In steatite base
