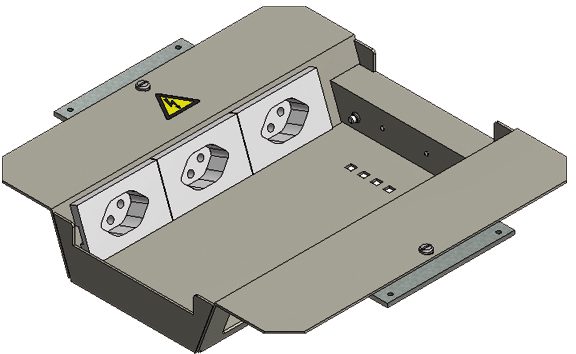

Installation kit 2x3FLF horizontal SB BAK22
Article number: 52030
Eldas number: 154965027
Price on demand
hook-in, to BAK with protective edge 12mm and 22mm
made of galvanized sheet steel 1.5mm
including 2 mounting plates
color: RAL 7032 pebble gray
equipped, wired and tested: 1 pc. Terminal block 7x2.5mm ²
3 pcs. socket FLF 3/5 T13 white 55200
minimum floor height: BAK12=74mm; BAK22=84mm
made of galvanized sheet steel 1.5mm
including 2 mounting plates
color: RAL 7032 pebble gray
equipped, wired and tested: 1 pc. Terminal block 7x2.5mm ²
3 pcs. socket FLF 3/5 T13 white 55200
minimum floor height: BAK12=74mm; BAK22=84mm
Tender text
Installation kit 2x3FLF horizontal SB BAK22 (52030):
Copy
This product is a member of the following product systems
123
Raised floor system DAK22 271x271 square, with levelable covering height
125
Raised floor system DAK5 278x278 square
with installation kit and protective housing
with installation kit and protective housing
190
Underfloor system with square plenum box and chrome steel/aluminum junction boxes, edge height 12mm for UFK 200x30 underfloor duct.
191
Underfloor system with square plenum box and chrome steel/aluminum junction boxes, edge height 12mm for UFK 200x40 underfloor duct.
192
Underfloor system with square plenum box and chrome steel/aluminum junction boxes, edge height 12mm for UFK 200x50 underfloor duct.
200
Underfloor system with square plenum box and chrome steel/aluminum junction boxes, edge height 12mm for UFK 300x30 underfloor duct.
201
Underfloor system with square plenum box and chrome steel/aluminum junction boxes, edge height 12mm for UFK 300x40 underfloor duct.
202
Underfloor system with square plenum box and chrome steel/aluminum junction boxes, edge height 12mm for UFK 300x50 underfloor duct.
210
Underfloor system with square plenum box and chrome steel/aluminum junction boxes, edge height 12mm for UFK 400x30 underfloor duct.
212
Underfloor system with square plenum box and chrome steel/aluminum junction boxes, edge height 12mm for UFK 400x50 underfloor duct.
210
Underfloor system with square plenum box and chrome steel and aluminum junction boxes, edge height 22mm for UFK 200x40 underfloor duct.
211
Underfloor system with square plenum box and chrome steel and aluminum junction boxes, edge height 22mm for UFK 200x50 underfloor duct.
220
Underfloor system with square plenum box and chrome steel and aluminum junction boxes, edge height 22mm for UFK 300x40 underfloor duct.
221
Underfloor system with square plenum box and chrome steel and aluminum junction boxes, edge height 22mm for UFK 300x50 underfloor duct.
230
Plenum box BAK22 for fastening to the slab formwork.
The installation of underfloor ducts requires a minimum height of the concrete overlay (60 mm). If this height is not available, special boxes can b...
The installation of underfloor ducts requires a minimum height of the concrete overlay (60 mm). If this height is not available, special boxes can b...
