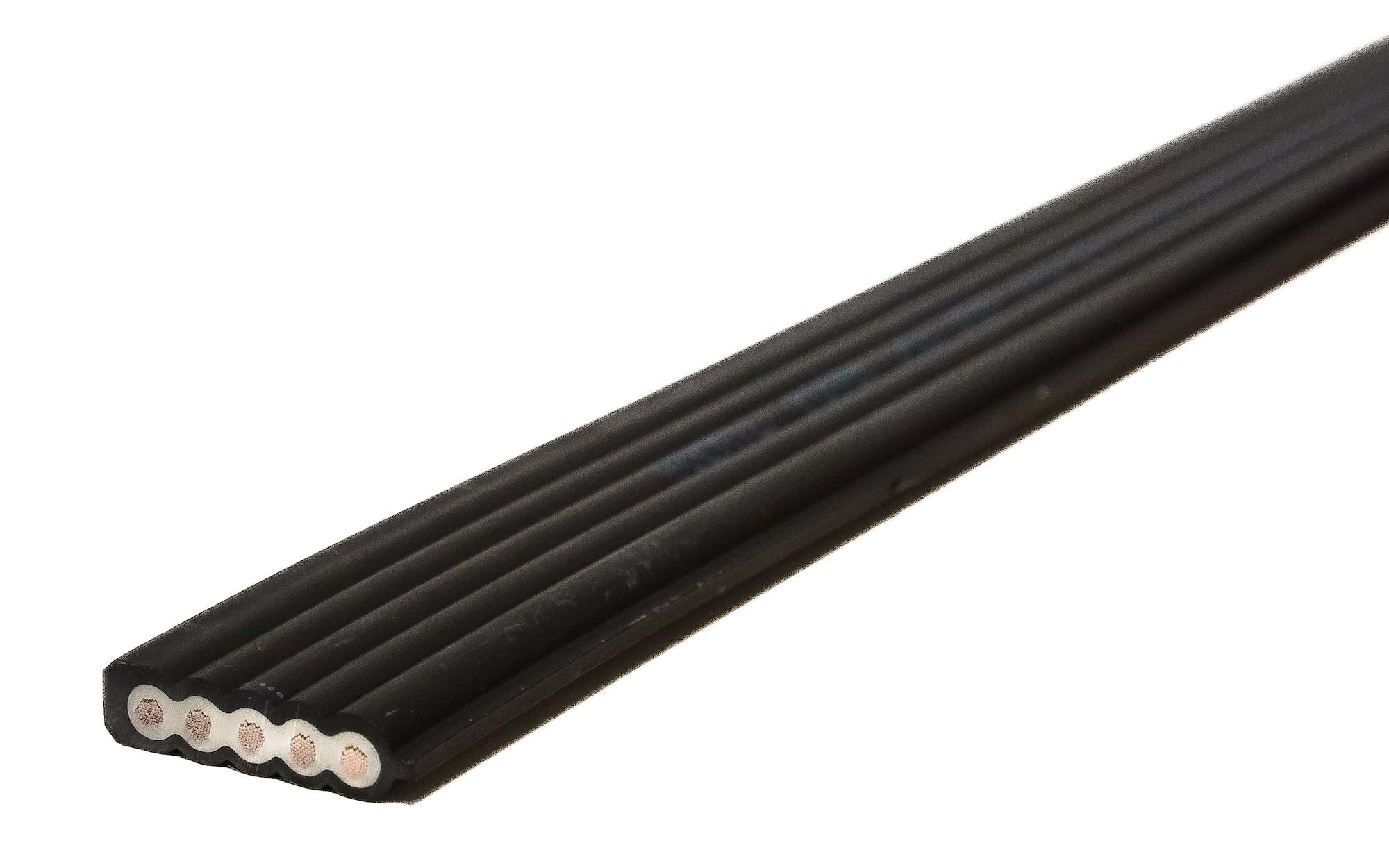

Flat cable power 5G2.5 mm² HF SW 2.0
Article number: 49846SW
Eldas number: 113383934
Price on demand
Flat cable Woertz power 5x2.5 mm², FR/LS0H black 3LNPE
Tender text
Flat cable power 5G2.5 mm² HF SW 2.0 (49846SW): Flat cable Woertz power 0.6/1.0kV 5x2.5mm² Halogen-free FR/LS0H black, 3LNPE, Class of fire: B2ca s1a d0 a1
Copy
| Construction (mm²) | 5x2.5 mm² |
| Dimensions width x height (mm) | 24x6 mm |
| Halogen free | Ja |
| Cable type | Halogeenvrije platte kabel |
| International designation | N1Z1Z1H2-K |
| Reaction to fire classification | B2ca s1a d0 a1 |
| Fire behavior | Kabels met niet-kritisch gedrag (volgens VKF 14-15) |
| Cross section (mm²) | 2.5 mm² |
| Copper conductor | Vertind, flexibel KL5 EN60228 |
| Conductor resistance (ohm/km) | 8,21 ohm/km |
| cores insulation | Vlamvertragende polyolefine |
| Sheat insulation | Polyolefine vlamvertrager |
| Sheath color | Zwart |
| Minimum bending radius | 6xH |
| Operating Temperature | -25 tot 90 °C |
| Installation temperature min. | 5 °C |
| Nominal voltage (VAC) | 600/1000 VAC |
| Test voltage | 4 kV/50Hz |
| Fire load (kWh/m) | 0,69 |
| Halogen free acc. to | IEC/EN60754-1/2 |
| Flame retardant according to | IEC/EN60332-1-2 |
| Minimal smoke emision acc. to | IEC/EN 61034-2 |
| Low fire propagation acc. To | IEC/EN 60332-3-24 |
Product accessories
Max. Vlechtbelasting: 50 kg. Voor Woertz brandveilige platte kabel: Woertz FE180 3G2,5 en 4 mm², Woertz FE180 5G2,5, 4 6 mm². Voor Woertz vlakke kabels: Woertz Technofil 5G2,5 1,5 mm², Woertz power 5G2,5 mm², Woertz Power IP 5G2,5 mm² 6 mm², Woertz combi 5G2.5 mm² 2x1,5 mm², Woertz Dali IP 5G2,5 mm² 2x1,5 mm², Woertz Dali 3/5G2,5 mm² 2x1,5 mm², Woertz 5G4 mm², Woertz 7G2,5 mm².
| Article number | 49386 E90 |
| Eldas number | 120013007 |
| Base Unit | Piece |
| availability | Delivery in 4 weeks |
| Dimensions length x width x height (mm) | 91.5x71.5x48 |
| Weight (g) | 89 |
| Article number | 49960 |
| Eldas number | 171013007 |
| Base Unit | Piece |
| availability | Delivery according to agreement |
| Dimensions length x width x height (mm) | 102×100×2.3 |
| Weight (g) | 27 |
Kabelklem 13,5 mm voor platte kabel Technofil om vast te schroeven
| Article number | 9054 |
| Eldas number | 120018007 |
| Base Unit | Piece |
| availability | Delivery in 4 weeks |
| Dimensions length x width x height (mm) | 13,5 |
| Weight (g) | 1,5 |
| Article number | 49731 |
| Eldas number | 120008107 |
| Base Unit | Piece |
| availability | available from stock |
| Dimensions length x width x height (mm) | 52x10x10 |
| Weight (g) | 1,91 |
Kabelklem om vast te schroeven, voor platte kabel power 5G2,5 mm²
| Article number | 49733 |
| Eldas number | 150900117 |
| Base Unit | Piece |
| availability | available from stock |
| Dimensions length x width x height (mm) | 15x40x8 |
| Weight (g) | 3,71 |
Kabeleindstuk IP68 voor vlakke kabel Technofil 5G2,5 mm², Power 5G2,5 mm² en DALI 3G2,5 mm² 2x1,5 mm².
| Article number | 48510/05 |
| Eldas number | 120900407 |
| Base Unit | Piece |
| availability | available from stock |
| Dimensions length x width x height (mm) | 40x36x16 |
| Weight (g) | 10 |
| Article number | 49935 |
| Base Unit | Piece |
| availability | available from stock |
| Dimensions length x width x height (mm) | 24.5 |
| Weight (g) | 475,23 |
Snelkoppelkast IP20/IP40 met 5-polige contactdoos Code1, toewijzing 3L-N-PE, 250/400V 20A, voor vlakke kabel Art.49845 en 49846
| Article number | 48100/5C1/S |
| Eldas number | 150700407 |
| Base Unit | Piece |
| availability | available from stock |
| Dimensions length x width x height (mm) | 113x61x36 |
| Number of poles | 5 pole |
| Weight (g) | 190 |
| Color | purple |
| Coding plug connection | Code 1 |
Snelkoppelingscontactdoos IP20/IP40, met 3-polige contactdoos Code1, toewijzing L1-N-PE, 250V 20A, voor vlakke kabel Art.49845 en 49846.
| Article number | 48100/L1/3C1/S |
| Eldas number | 150700107 |
| Base Unit | Piece |
| availability | available from stock |
| Dimensions length x width x height (mm) | 113x61x36 |
| Number of poles | 3 pole |
| Weight (g) | 190 |
| Color | purple |
| Coding plug connection | Code 1 |
Snelkoppelingscontactdoos IP20/IP40, met 3-polige contactdoos Code1, toewijzing L2-N-PE, 250V 20A, voor vlakke kabel Art.49845 en 49846.
| Article number | 48100/L2/3C1/S |
| Eldas number | 150700207 |
| Base Unit | Piece |
| availability | available from stock |
| Dimensions length x width x height (mm) | 113x61x36 |
| Number of poles | 3 pole |
| Weight (g) | 190 |
| Color | purple |
| Coding plug connection | Code 1 |
Snelkoppelingscontactdoos IP20/IP40, met 3-polige contactdoos Code1, toewijzing L3-N-PE, 250V 20A, voor vlakke kabel Art.49845 en 49846.
| Article number | 48100/L3/3C1/S |
| Base Unit | Piece |
| availability | available from stock |
| Dimensions length x width x height (mm) | 113x61x36 |
| Number of poles | 3 pole |
| Weight (g) | 190 |
| Color | purple |
| Coding plug connection | Code 1 |
Kabelklem om vast te lijmen, voor platte kabel power 5G2,5 mm²
| Article number | 49733A |
| Eldas number | 150900107 |
| Base Unit | Piece |
| availability | Delivery according to agreement |
| Dimensions length x width x height (mm) | 15x40x8 |
| Weight (g) | 3,91 |
