Name

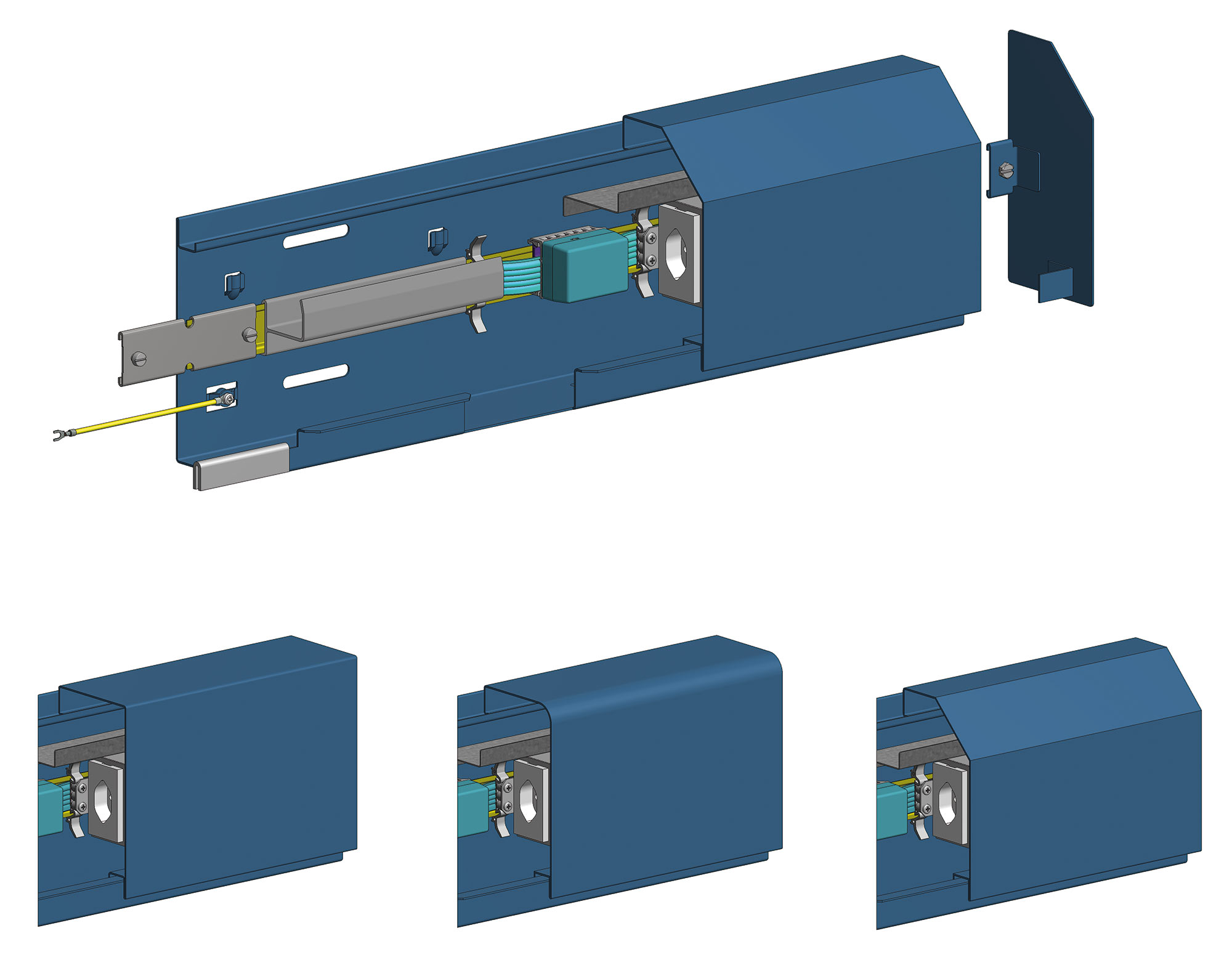

Combination trunking system KOK 180x90 as base trunking

Description

Combination trunking KOK 180x90 mm as base trunking. With suspension cover.

System overview
Combination trunking system KOK 180x90 as base trunking.pdf

Cable tray
Channel shell
Connecting brides
Connector
Corner piece
End wall
Hanging lid
Installation kit

Channel shell FnW KOK 180x90

made of sendzimir-galvanized steel sheet 1.5mm with DIN-35 rail
with 4xFLF 3/5 and 1xFLF 6/5 pre-punching per meter in the channel tray bottom
including connecting material and ground wire
color: at choice
length: 2000mm

Article number	59471
Base Unit	Piece
availability	Delivery according to agreement

Price on demand

Connecting bride straight

for connecting the channel shells

Article number	53600
Base Unit	Piece
availability	Delivery according to agreement

Price on demand

Connector straight for DIN rail

for connecting the channel shell for DIN-35 rail

Article number	53512
Base Unit	Piece
availability	Delivery according to agreement
Weight (g)	89,29

Price on demand

Connecting clamp IG 90° with 6-kt-Schr.

for connecting with 90° inside miter of the channel shells

Article number	53602
Base Unit	Piece
availability	Delivery according to agreement
Weight (g)	57,58

Price on demand

Connector IG 90° for DIN rail

for connecting the channel shell for DIN-35 rail with 90° inside miter

Article number	53539
Base Unit	Piece
availability	Delivery according to agreement
Weight (g)	45

Price on demand

Connecting clamp AG 90° with 6-kt-Schr.

for connecting with external miter 90° of the channel shells

Article number	53601
Base Unit	Piece
availability	Delivery according to agreement
Weight (g)	57,58

Price on demand

Connector AG 90° for DIN rail

for connecting the channel shell for DIN-35 rail with external miter 90°

Article number	53538
Base Unit	Piece
availability	Delivery according to agreement
Weight (g)	47

Price on demand

Connecting clamp IG 135° with 6-kt-Schr.

for connecting with internal miter 135° of the channel shells

Article number	53604
Base Unit	Piece
availability	Delivery according to agreement
Weight (g)	57,58

Price on demand

Connector IG 135° for DIN rail

for connecting the channel shell for DIN-35 rail with inside miter 135°

Article number	53541
Base Unit	Piece
availability	Delivery according to agreement
Weight (g)	45

Price on demand

Connecting clamp AG 135° with 6-kt-Schr.

for connecting with external miter 135° of the channel shells

Article number	53603
Base Unit	Piece
availability	Delivery according to agreement
Weight (g)	57,58

Price on demand

Connector AG 135° for DIN rail

for connecting the channel shell for DIN-35 rail with external miter 135°

Article number	53540
Base Unit	Piece
availability	Delivery according to agreement
Weight (g)	47

Price on demand

Hanging lid chamfer white KOK 180x90 SOK

Suspension cover chamfer white KOK 180x90 SOK. Use as a plinth channel made of galvanized sheet steel
Color: RAL 9010 Pure white
Length: 1000mm

Article number	59492
Base Unit	Piece
availability	Delivery according to agreement

Price on demand

Use as a plinth channel made of galvanized steel sheet 1.5mm
Color: at choice
Length: 1000mm

Article number	59493
Base Unit	Piece
availability	Delivery according to agreement

Price on demand

Hanging lid Radius white KOK 180x90 SOK

Suspension cover Radius white KOK 180x90 SOK. Use as a plinth channel made of galvanized sheet steel
Color: RAL 9010 Pure white
Length: 1000mm

Article number	59498
Base Unit	Piece
availability	Delivery according to agreement

Price on demand

Suspension cover Radius FnW KOK 180x90 SOK

Use as a plinth channel made of galvanized sheet steel
Color of your choice
Length: 1000mm

Article number	59499
Base Unit	Piece
availability	Delivery according to agreement

Price on demand

Hanging lid edge white KOK 180x90 SOK

Suspension cover edge white KOK 180x90 SOK. Use as a plinth channel made of galvanized sheet steel
Color: RAL 9010 Pure white
Length: 1000mm

Article number	59526
Base Unit	Piece
availability	Delivery according to agreement

Price on demand

Hanging lid edge color choice KOK 180x90 SOK

Use as a plinth channel made of galvanized steel sheet 1.5mm
Color: at choice
Length: 1000mm

Article number	59527
Base Unit	Piece
availability	Delivery according to agreement

Price on demand

End wall l chamfer FnW KOK 180x90

Finish left galvanized steel sheet 1.5mm
Color: at choice

Article number	59479
Base Unit	Piece
availability	Delivery according to agreement

Price on demand

End wall r chamfer ws KOK 180x90

Version right galvanized sheet steel 1.5mm
Color: RAL 9010 Pure white

Article number	59480
Eldas number	127561027
Base Unit	Piece
availability	Delivery according to agreement

Price on demand

End wall r chamfer FnW KOK 180x90

Finish right galvanized steel sheet 1.5mm
Color: at choice

Article number	59481
Base Unit	Piece
availability	Delivery according to agreement

Price on demand

End wall l radius ws KOK 180x90

Version left galvanized sheet steel 1.5mm
Color: RAL 9010 Pure white

Article number	59488
Base Unit	Piece
availability	Delivery according to agreement

Price on demand

End wall l Radius FnW KOK 180x90

Finish left galvanized steel sheet 1.5mm
Color: at choice

Article number	59489
Base Unit	Piece
availability	Delivery according to agreement

Price on demand

End wall r radius ws KOK 180x90

Version right galvanized sheet steel 1.5mm
Color: RAL 9010 Pure white

Article number	59490
Base Unit	Piece
availability	Delivery according to agreement

Price on demand

End wall r radius FnW KOK 180x90

Finish right galvanized steel sheet 1.5mm
Color: at choice

Article number	59491
Base Unit	Piece
availability	Delivery according to agreement

Price on demand

Version left galvanized sheet steel 1.5mm
Color: RAL 9010 Pure white

Article number	59548
Base Unit	Piece
availability	Delivery according to agreement

Price on demand

End wall left edge color choice KOK 180x90

End wall version left to combi trunking KOK 180x90 made of galvanized sheet steel 1.5mm
Color: at choice

Article number	59549
Base Unit	Piece
availability	Delivery according to agreement

Price on demand

Version right galvanized sheet steel 1.5mm
Color: RAL 9010 Pure white

Article number	59550
Base Unit	Piece
availability	Delivery according to agreement

Price on demand

End wall r edge FnW KOK 180x90

Finish right galvanized steel sheet 1.5mm
Color: at choice

Article number	59551
Base Unit	Piece
availability	Delivery according to agreement

Price on demand

Corner piece 90° outside chamfer white KOK 180x90 SOK

Corner piece 90° chamfer, white, outside use as a plinth channel made of galvanized sheet steel 1.5mm.
Color: RAL 9010 Pure white
Leg length: à 300mm

Article number	59496
Base Unit	Piece
availability	Delivery according to agreement

Price on demand

90° outside use as a plinth channel of galvanized sheet steel 1.5mm
Color: at choice
Length of leg: à 300mm

Article number	59497
Base Unit	Piece
availability	Delivery according to agreement

Price on demand

90° inside use as a plinth channel made of galvanized sheet steel 1.5mm
Color: RAL 9010 Pure white
Leg length: à 300mm

Article number	59494
Base Unit	Piece
availability	Delivery according to agreement

Price on demand

90° inside use as a plinth channel of galvanized sheet steel 1.5mm
Color: at choice
Length of leg: à 300mm

Article number	59495
Base Unit	Piece
availability	Delivery according to agreement

Price on demand

Corner piece 90° asn radius ws KOK 180x90 SOK

90° outside use as a plinth channel made of galvanized sheet steel 1.5mm
Color: RAL 9010 Pure white
Leg length: à 300mm

Article number	59576
Base Unit	Piece
availability	Delivery according to agreement

Price on demand

Corner piece 90° asn radius FnW KOK 180x90 SOK

90° outside use as a plinth channel of galvanized sheet steel 1.5mm
Color: at choice
Length of leg: à 300mm

Article number	59577
Base Unit	Piece
availability	Delivery according to agreement

Price on demand

Corner piece90° inn radius ws KOK 180x90 SOK

90° inside use as a plinth channel made of galvanized sheet steel 1.5mm
Color: RAL 9010 Pure white
Leg length: à 300mm

Article number	59574
Base Unit	Piece
availability	Delivery according to agreement

Price on demand

Corner piece90° inn Radius FnW KOK 180x90 SOK

90° inside use as a plinth channel of galvanized sheet steel 1.5mm
Color: at choice
Length of leg: à 300mm

Article number	59575
Base Unit	Piece
availability	Delivery according to agreement

Price on demand

Corner piece 90° outside edge white KOK 180x90 SOK

Corner piece 90° edge white, outside use as a plinth channel made of galvanized sheet steel 1.5mm.
Color: RAL 9010 Pure white
Leg length: à 300mm

Article number	59586
Base Unit	Piece
availability	Delivery according to agreement

Price on demand

Corner piece 90° asn edge FnW KOK 180x90 SOK

90° outsideUse as a plinth channel made of galvanized steel sheet 1.5mm
Color: at choice
Length of leg: à 300mm

Article number	59587
Base Unit	Piece
availability	Delivery according to agreement

Price on demand

Corner piece 90° inn edge ws KOK 180x90 SOK

90° inside use as a plinth channel made of galvanized sheet steel 1.5mm
Color: RAL 9010 Pure white
Leg length: à 300mm

Article number	59584
Base Unit	Piece
availability	Delivery according to agreement

Price on demand

Corner piece 90° inn edge FnW KOK 180x90 SOK

90° inside use as a plinth channel of galvanized sheet steel 1.5mm
Color: at choice
Length of leg: à 300mm

Article number	59585
Base Unit	Piece
availability	Delivery according to agreement

Price on demand

Installation kit DS 2FLF 3/5 empty

made of sendzimir-galvanized sheet steel 1.5mm
to snap onto DIN-35 rail
Color: raw

Article number	57191
Base Unit	Piece
availability	Delivery according to agreement
Weight (g)	268,4

Price on demand

Installation kit DS 1FLF 6/5 2FLF 3/5 empty

made of senzimir galvanized steel sheet 1.5mm
to snap onto DIN 35 rail
Color: raw

Article number	57184
Base Unit	Piece
availability	Delivery according to agreement
Weight (g)	438

Price on demand

Installation kit DS 1FLF 6/5 empty

made of galvanized sheet steel 1.5mm
to snap on DIN35 rail
Color: RAL 7032 pebble gray

Article number	57183
Base Unit	Piece
availability	Delivery according to agreement
Weight (g)	73,4

Price on demand

Installation kit DS 1FLF 3/5 empty

made of galvanized sheet steel 1.5mm
to snap on DIN35 rail
color: RAL 7032 pebble gray

Article number	57187
Base Unit	Piece
availability	Delivery according to agreement
Weight (g)	60,9

Price on demand

Installation kit DS Sts 2x1-2LM empty

made of sendzimir galvanized sheet steel for socket alignment in longitudinal direction
snaps onto DIN35 rail
for the use of two sockets Legrand Mosaic 45x45

Article number	57192
Base Unit	Piece
availability	Delivery according to agreement
Weight (g)	341

Price on demand

Installation kit DS Scs 2x1-2LM empty

made of sendzimir-galvanized sheet steel for socket alignment in longitudinal direction
snaps onto DIN35 rail
for the use of two sockets Legrand Mosaic 45x45
low-current version
