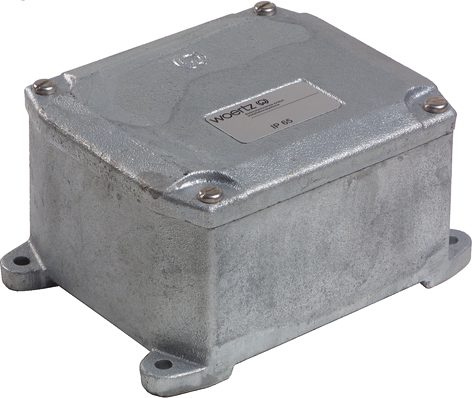

Cast iron junction box, 141x120x84 mm

Cast iron junction box, 141x120x84 mm

Article number: 6100Z
Eldas number: 153320007
Price on demand
IP65, hot-galvanized, without inlet
Base Unit Piece
Dimensions length x width x height (mm) 141x120x84 mm
availability Delivery according to agreement
Weight (g) 3700 g
Tender text
Cast iron junction box, 141x120x84 mm (6100Z): IP65, hot-galvanized, without inlet
Copy
Files
Declaration of Conformity
Characteristics
Base Unit Piece
availability Delivery according to agreement
EAN Code 7611718243615
group 167000
Packaging unit 1
country of origin CH
Customs tariff number 853690
Weight (g) 3700 g
Technical data
Dimensions length x width x height (mm) 141x120x84 mm

This product is a member of the following product systems

Cast iron junction boxes type I up to 5x16 mm², 500 V, 141x120x84 mm
Cast iron junction boxes type I up to 5x16 mm², 500 V, 141x120x84 mm
15
  • IP65 International Protection
  • Grey cast iron housing phosphated and painted gray
  • With internal protective conductor terminal no. 2860, 4 mm²
  • splash-proof
  • for threads up to max. 6xM32 or 4xM40
