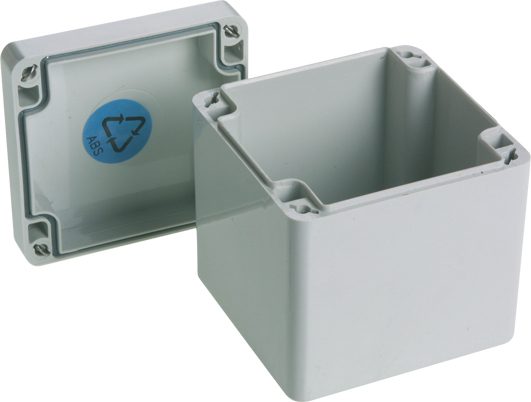

Box of ABS Lithos 82x80x85mm

Article number: 64356

Eldas number: 152095207

Price on demand

-IP65 International Protection color RAL 7035, light gray stainless steel quick-release fastener, self-retaining-with neoprene gasket (available with silicone gasket on request).

Base Unit	Piece
Dimensions length x width x height (mm)	82x80x85 mm
availability	Delivery according to agreement
Weight (g)	175,8 g

Tender text

Box of ABS Lithos 82x80x85mm (64356): -IP65 International Protection color RAL 7035, light gray stainless steel quick-release fastener, self-retaining-with neoprene gasket (available with silicone gasket on request).

Copy

Product data sheet
64356 - Box of ABS Lithos 82x80x85mm.pdf

Files
Declaration of Conformity	rohs_and_reachV01.pdf

Characteristics
Base Unit	Piece
availability	Delivery according to agreement
EAN Code	7611718237201
group	167000
Packaging unit	1
country of origin	CH
Customs tariff number	853690
Weight (g)	175,8 g

Technical data
Dimensions length x width x height (mm)	82x80x85 mm
Material	ABS
Hole spacing (mm)	58 mm

Design data
Mounting holes Ø (mm)	5 mm
Rail length	72 mm

Product accessories

Clamp set DIN15 8x2.5mm² 7L-PE 68mm

Branch terminal insert with DIN15 rail, with 68 mm length, and the terminals: 7 x 2760 and 1x 2721.

Article number	80451
Eldas number	157207807
Weight (g)	58

Price on demand

Terminal set DIN15 5x2.5 mm² 3L-N-PE 68 mm

Branch terminal insert with DIN15 rail, with 68 mm length, and the terminals: 3x 30902GR, 1x 30902BL, 1x 30902E.

Article number	64451
Eldas number	157201107
Weight (g)	46.72

Price on demand

This product is a member of the following product systems

ABS- Housing LiTHOS

1

IP65 International Protection
Color RAL 7035, light gray
Quick-release fastener made of stainless steel, self-retaining
With neoprene seal (available on request, with silicone seal)
