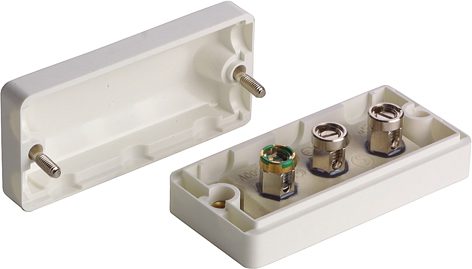

Junction box, 64x30 mm, 3x1.5 mm²

Junction box, 64x30 mm, 3x1.5 mm²

Article number: 2977C
Eldas number: 150033007
Price on demand
Thermoset, white, with terminals 2P PE
Base Unit Piece
Dimensions length x width x height (mm) 60x30x22 mm
availability Delivery in 4 weeks
Weight (g) 50 g
Tender text
Junction box, 64x30 mm, 3x1.5 mm² (2977C): thermosetting material white
Copy
Files
Declaration of Conformity
Characteristics
Base Unit Piece
availability Delivery in 4 weeks
EAN Code 7611718200724
group 167000
Packaging unit 10
country of origin CH
Customs tariff number 8536.9080
Weight (g) 50 g
Technical data
Dimensions length x width x height (mm) 60x30x22 mm
Cross section (mm²) 3x1.5 mm²
Hole spacing (mm) 15 mm
Design data
Mounting holes Ø (mm) 4.5 mm
Nominal data 500V/10A
This product is a member of the following product systems
Plastic junction boxes up to 4x1.5 mm²
Plastic junction boxes up to 4x1.5 mm²
1
  • for dry installations only
  • two-piece housing with pre-marked knockouts
  • With one screw terminals, with anti-spread ring, for continuous conductors, made of nickel-plated brass. In steatite base
