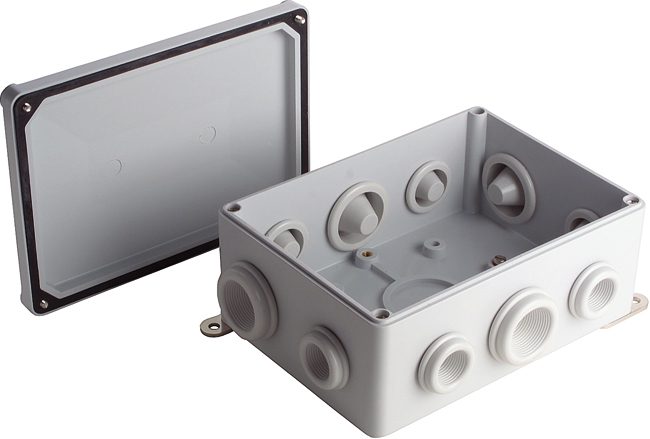

Junction box 180x130x80mm, 5x16mm²

Junction box 180x130x80mm, 5x16mm²

Article number: 3196/5X16
Eldas number: 152245057
Price on demand
Thermoset, gray, with terminals 5x16mm², 63A, 3P N PE Art. No. 30841.
Base Unit Piece
Dimensions length x width x height (mm) 180x130x80 mm
availability Delivery according to agreement
Weight (g) 1463,6 g
Tender text
Junction box 180x130x80mm, 5x16mm² (3196/5X16): Thermoset, grey, with terminals 5x16mm², 63A, 3P+N+PE Art. No. 30841.
Copy
Characteristics
Base Unit Piece
availability Delivery according to agreement
EAN Code 7611718205408
group 167000
Packaging unit 4
country of origin CH
Customs tariff number 392590
Weight (g) 1463,6 g
Technical data
Dimensions length x width x height (mm) 180x130x80 mm
Hole spacing (mm) 100 mm
Design data
Mounting holes Ø (mm) 6 mm
Rail length 115 mm
Nominal data 500V

Product accessories

Article number 30841BL
Eldas number 158111157
Base Unit Piece
availability available from stock
Dimensions length x width x height (mm) 46.5x12.5x35
Weight (g) 25
Color blue
Price on demand
Article number 30841E
Eldas number 158111167
Base Unit Piece
availability available from stock
Dimensions length x width x height (mm) 46.5x12.5x35
Weight (g) 25
Color green/yellow
Price on demand
Article number 30841GR
Eldas number 158111137
Base Unit Piece
availability available from stock
Dimensions length x width x height (mm) 46.5x12.5x35
Weight (g) 25
Color gray
Price on demand
PG21, made of thermoplastic, gray.
Article number 3078
Eldas number 152900157
Base Unit Piece
availability Delivery according to agreement
Halogen free Yes
Price on demand
PG29, made of thermoplastic, gray.
Article number 3079
Eldas number 152900167
Base Unit Piece
availability Delivery according to agreement
Color gray
Price on demand

This product is a member of the following product systems

10
  • 5x35 mm²
  • IP54 International Protection DIN 40050
  • With two swivel mounting lugs
  • for two screw-type branch terminals series 30840 ..., 5x10 mm²
