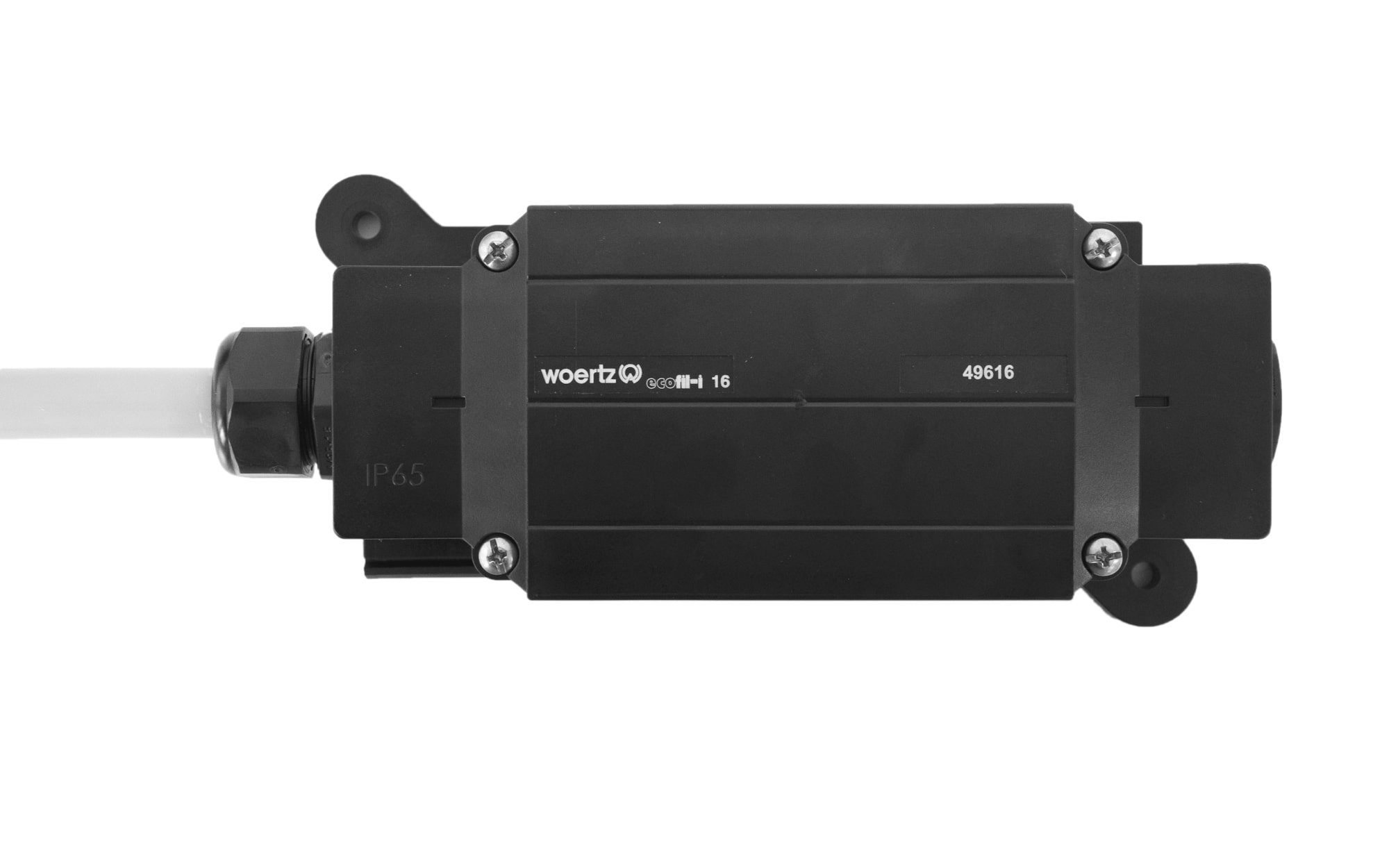

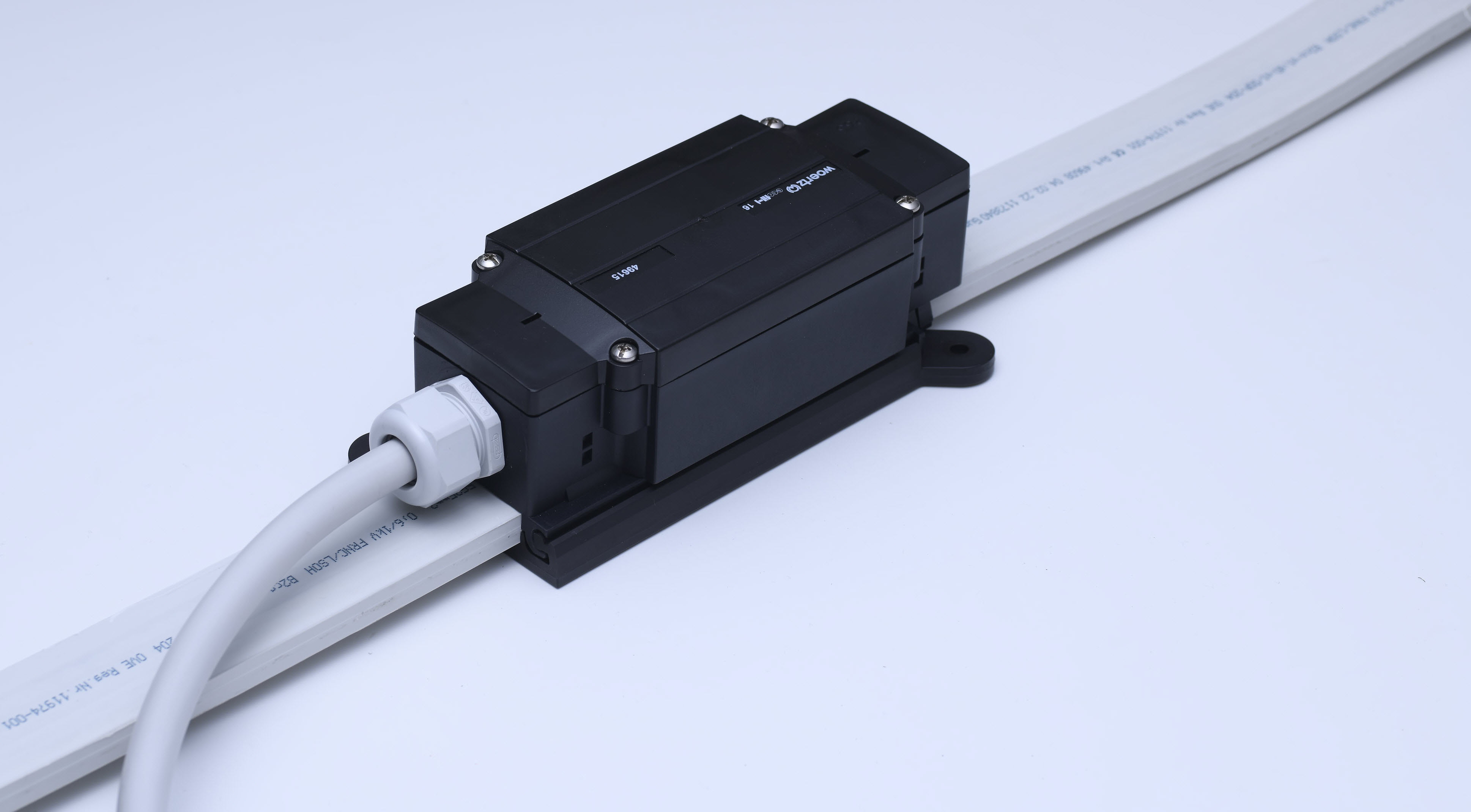

Junction box Pre-assembled for flat cable 49615 2M HF-K 5G16
Article number: 49615/1x5G16/20
Price on demand
Pre-assembled junction box 5-pole 5G16mm²/5G25mm² including fastening and 1 threaded connector M40x1.5 for 1 outgoing circuit. With cable gland 49635 and pre-assembled round cable 5G16mm² 2 m, with free end.
Tender text
Junction box Pre-assembled for flat cable 49615 2M HF-K 5G16 (49615/1x5G16/20): Pre-assembled junction box 5-pole 5G16mm²/5G25mm² including fastening and 1 threaded connector M40x1.5 for 1 outgoing circuit. With cable gland 49635 and pre-assembled round cable 5G16mm² 2 m, with free end.
Copy
| Box Type | Cajas de empalme |
| Dimensions length x width x height (mm) | 2200x85x91 mm |
| Degree of protection | IP65 |
| Metal parts | Protegido contra la corrosión |
| Flat cable contacting type | Contacto de perforación (tornillo) EN 60998-2-3 |
| Number of poles | 5 polos |
| Contacting type | Terminal de tornillo |
| Connection conductor (mm²) | 5x16 mm² |
| Thread cable gland | con prensaestopas M40x1,5 |
| Rated current heavy current part (A) | 76 (16 mm²) / 80 (con cable plano 5x25mm²) A |
| Rated voltage heavy current part (V) | 690 V |
| Cable length (m) | 2,0 m |
| Halogen free | Sí |
| Reaction to fire classification | Cca s1 d1 a1 |
| Cross section (mm²) | 5x16 mm² |
| Copper conductor | Cableado fino KL5 EN60228 |
| cores insulation | Poliolefina ignífuga |
| Cores colors | gris, negro, marrón, azul, verde/amarillo |
| Sheat insulation | Poliolefina ignífuga |
| Minimum bending radius | 6xD |
| Operating Temperature | -15 a 85 °C |
| Installation temperature min. | 5 °C |
| Plastic parts | sin halógenos |
| Material slider/bottom part | Poliamida, negro |
| Material housing | Poliamida, negro |
| Material hood | Poliamida, negro |
| Number Screwdriver Pointed screws Heavy current part | |
| Number Screwdriver Clamping screws Heavy current part | Torx 25 |
