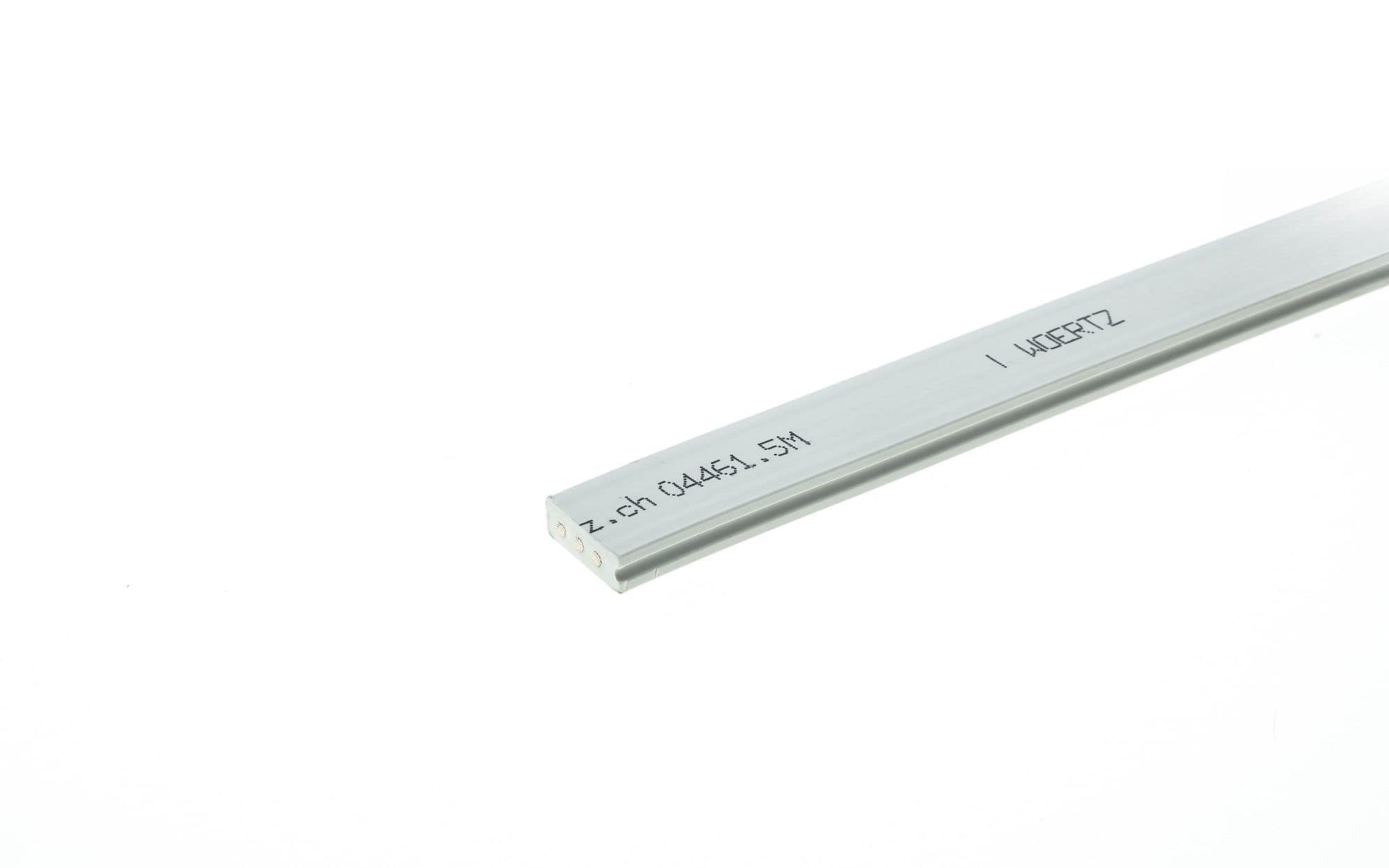

Flat cable 3x4² HF GY (DC)
Article number: 49646/DC
Price on demand
Flat cable Woertz 0.6/1.0kV, 3x4mm², halogen-free, HFFR, light gray,
reaction to fire class: B2ca s1a d0 a1, for DC applications
Tender text
Flat cable 3x4² HF GY (DC) (49646/DC): Flat cable Woertz 0.6/1.0kV, 3x4mm², halogen-free, HFFR, light gray,
reaction to fire class: B2ca s1a d0 a1, for DC applications
Copy
| Construction | 3x4.0 mm² |
| Dimensions width x height (mm) | 16.5x6 mm |
| Halogen free | Yes |
| Cable type | Halogen free flat cable |
| International designation | N1Z1Z1H2-K |
| Reaction to fire classification | B2ca s1a d0 a1 |
| Fire behavior | Cables with non-critical behavior (according to VKF 14-15) |
| Cross section (mm²) | 4 mm² |
| Copper conductor | Tinned, flexible KL5 EN60228 |
| Conductor resistance (ohm/km) | 5,09 ohm/km |
| cores insulation | Flame retardant polyolefin |
| Sheat insulation | Polyolefin flame retardant |
| Sheath color | Light gray |
| Minimum bending radius | 6xH |
| Operating Temperature | -25 till 90 °C |
| Installation temperature min. | 5 °C |
| Nominal voltage (VAC) | 600/1000 VAC |
| Test voltage | 4kV/50Hz |
| Fire load (kWh/m) | 0,53 |
| Halogen free acc. to | IEC/EN 60754-1/2 |
| Flame retardant according to | IEC/EN60332-1-2 |
| Minimal smoke emision acc. to | IEC/EN 61034-2 |
Product accessories
| Article number | 49664 |
| ELDAS® number | 120008507 |
| Base Unit | Piece |
| availability | Delivery according to agreement |
| Dimensions length x width x height (mm) | 69.7x10x10.2 |
| Weight | 1 |
| Color | gray |
