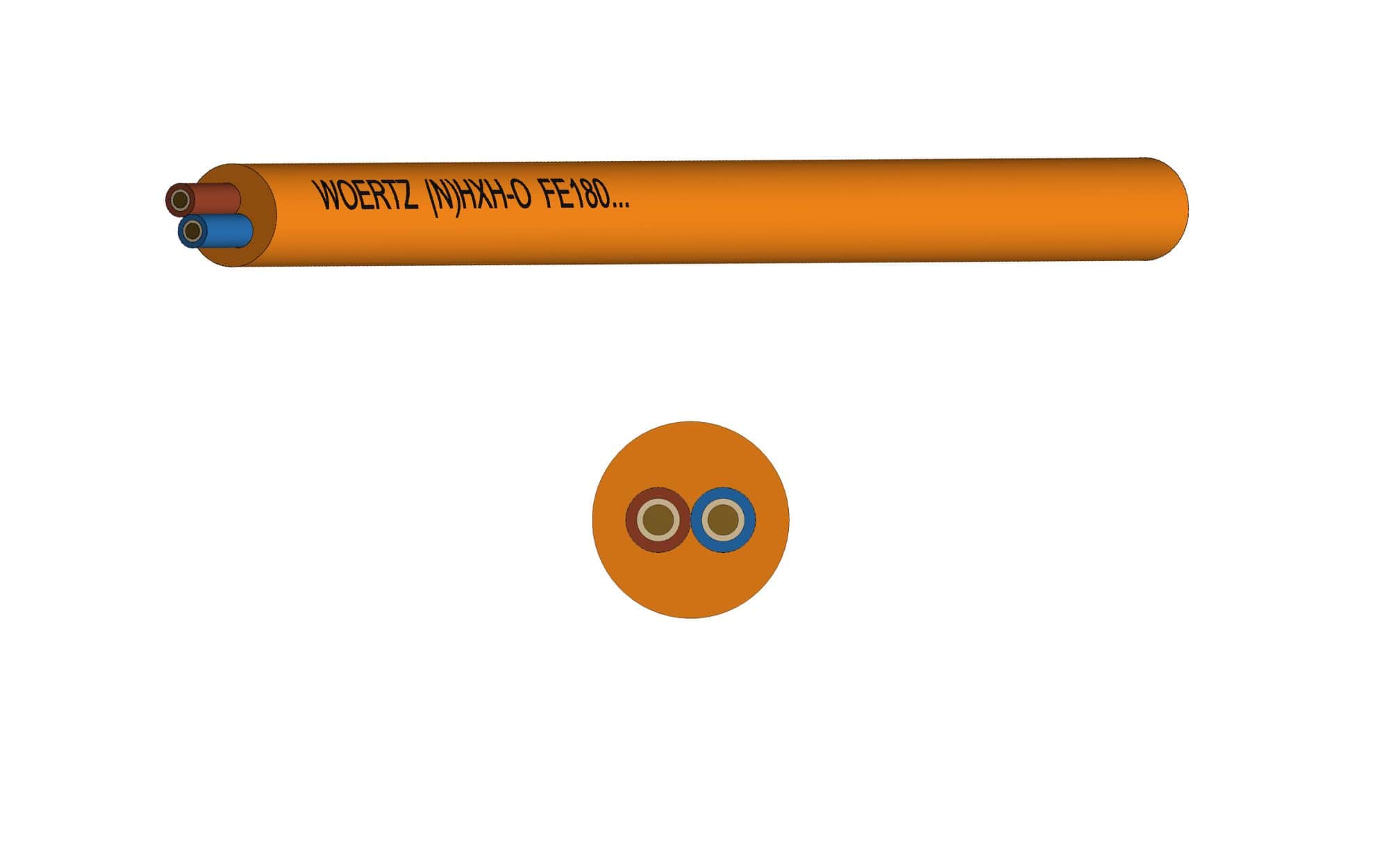

Cable (N)HXH-O FE180 2x4mm2 Orange
Article number: 48970/044
Price on demand
Cable Woertz (N)HXH-O FE180 E90 2x4mm2 0.6/1.0kV Orange, fire behavior class: B2ca s1a d0 a1
Tender text
Cable (N)HXH-O FE180 2x4mm2 Orange (48970/044): Cable Woertz (N)HXH-O FE180 E30/E90 2x4mm² 0.6/1.0kV FR/LS0H orange LN Reaction to fire class: B2ca s1a d0 a1
Copy
| Construction (mm²) | 2x4 mm² |
| Halogen free | Yes |
| Cable type | Brandsicherheitskabel |
| International designation | N1ZZ1H2-U |
| Reaction to fire classification | B2ca s1a d0 a1 |
| Fire behavior | Cables with non-critical behavior (according to VKF 14-15) |
| Cross section (mm²) | 4 mm² |
| Copper conductor | Draht |
| cores insulation | Flame retardant polyolefin |
| Sheat insulation | Polyolefin flame retardant |
| Sheath color | Orange |
| Minimum bending radius | 8xR |
| Operating Temperature | -25 till 90 °C |
| Installation temperature min. | 5 °C |
| Nominal voltage (VAC) | 600/1000 VAC |
| Test voltage | 4 kV/50Hz |
| Halogen free acc. to | IEC/EN60754-1/2 |
| Flame retardant according to | IEC/EN60332-1-2 |
| Minimal smoke emision acc. to | IEC/EN 61034-2 |
| Low fire propagation acc. To | IEC/EN 60332-3-24 |
| Function maintenance | E90 |
