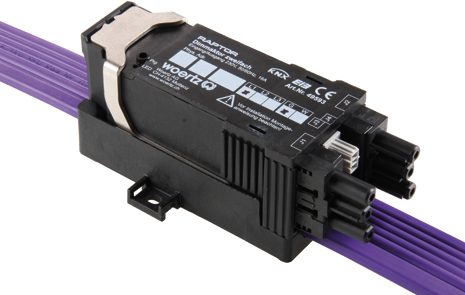

Raptor dimming actuator 2-fold - KNX - L3 - Code 1
Article number: 49593G/L3
ELDAS® number: 405441317
Price on demand
Raptor dimm ing actuator 2-fold - 2 x 3-pole socket Code 1, 16 A max., phase L3 - 2 x 2-pole socket Code Woertz, 2 x 1-10 VDC - KNX bus coupler integrated - IP20
Tender text
Raptor dimming actuator 2-fold - KNX - L3 - Code 1 (49593G/L3): Raptor dimm ing actuator 2-fold - 2 x 3-pole socket Code 1, 16 A max., phase L3 - 2 x 2-pole socket Code Woertz, 2 x 1-10 VDC - KNX bus coupler integrated - IP20
Copy
| Dimensions length x width x height (inch) | 5.55x2.91x2.17 inch |
| Degree of protection | IP20 |
| Flat cable contacting type | Piercing contact (knife) EN 60998-2-3 |
| Material | PA 6.6 |
| Configuration mode | S-mode |
| Type of connection | 3-pole socket |
| Plug-in system | Code 1 |
| Number of channels | 2 |
| Type of mounting | Flat cable Woertz combi 5G2.5 2x1.5 mm2 |
| Transmission media | KNX TP1 |
| Operating Temperature | -5 - 45 °C |
| Installation temperature min. | 10 °C |
| Rated current per channel (A) | 16 A |
| Contact to flat cable | L3NPE KNX |
| Operating voltage | 230 VAC ± 10 % |
| KNX bus voltage (type) | 29 VDC SELV Typ |
| Switching voltage (VAC) | 230 VAC |
| Plug-in system DIM outputs | Code Woertz |
| Plug-in connection DIM outputs | 2-polige Buchse |
| DIM control voltage | 1-10 VDC |
