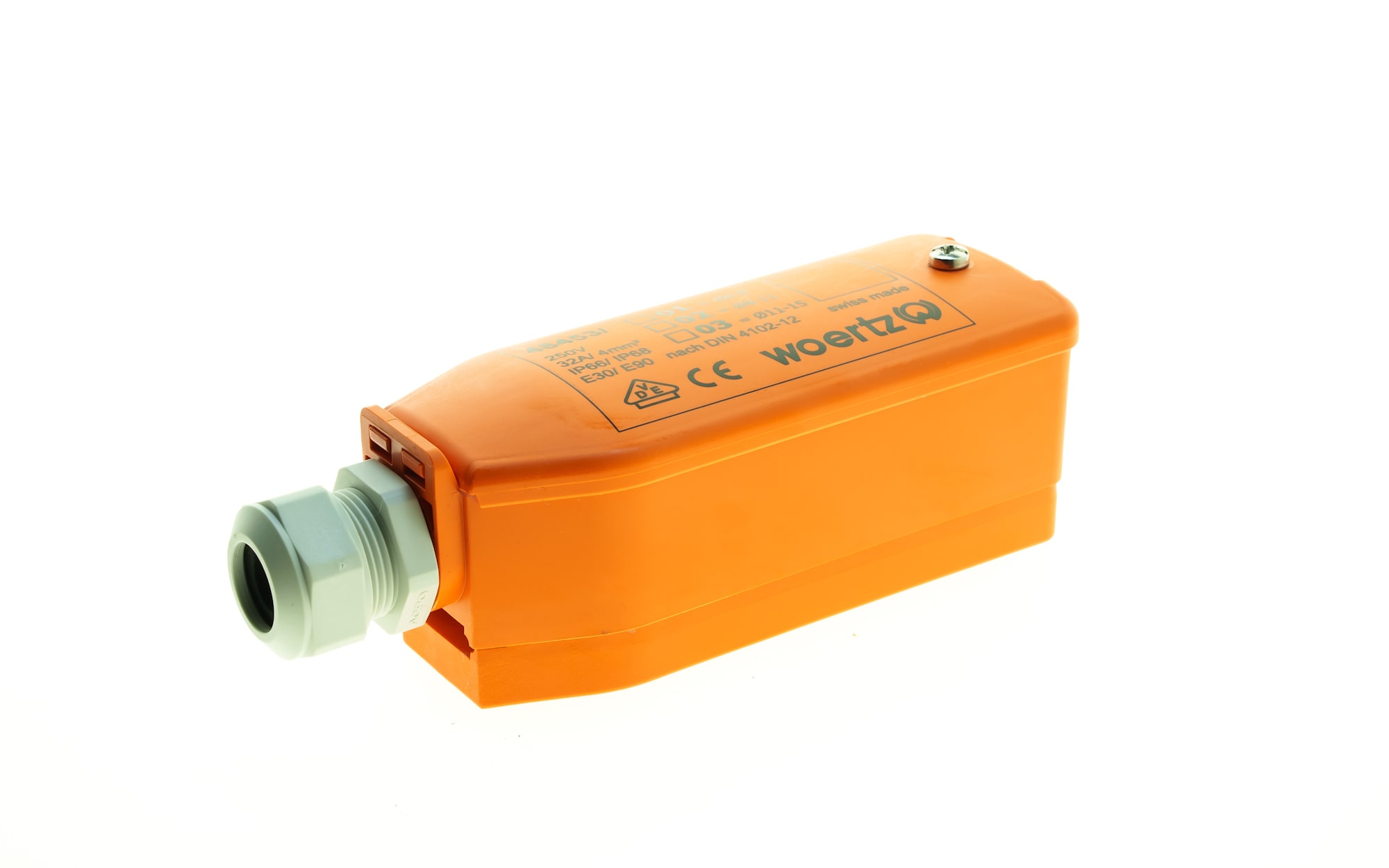

Box FC E90 3G6 junction M20 Ø11-15

Box FC E90 3G6 junction M20 Ø11-15

Article number: 48553/03
Price on demand
Junction box E90 IP66/IP68, 2-screw-contact for insulation stripping free supply and derivation, with screw connection for power current 3P 6mm², longitudinally, incl. cable gland M20x1.5 with clamping range Ø 11-15 mm
Base Unit Piece
Dimensions length x width x height (mm) 137x50x49  mm
availability available from stock
Number of poles 3 pole
Weight 386 g
Color orange
Tender text
Box FC E90 3G6 junction M20 Ø11-15 (48553/03): Junction box E90 IP66/IP68, 2-screw-contact for insulation stripping free supply and derivation, with screw connection for power current 3P 6mm², longitudinally, incl. cable gland M20x1.5 with clamping range Ø 11-15 mm
Copy
Characteristics
Base Unit Pieza
availability disponible en stock
group 0170000
Packaging unit -
country of origin CH
Customs tariff number 8536.908
Weight 386 g
Color naranja
Technical data
Dimensions length x width x height (mm) 137x50x49  mm
Dimensions length x width x height (inch) 5.39x1.97x1.93  inch
Degree of protection IP66/IP68 (2m,30min)
Metal parts Piezas metálicas:V4A / Contacto : Aleación de Cu
Flat cable contacting type Contacto de perforación (tornillo) EN 60998-2-3
Number of poles 3 polos
Contacting type Terminal de tornillo
Thread cable gland con prensaestopas M20x1,5 (IP68) D= 11,0 mm - 15,0 mm
Cable gland (mm) 11.0-15.0 mm
Rated current heavy current part (A) 32 (4 mm²) A
Rated voltage heavy current part (V) 690 V
Operating Temperature -15 a 85 °C
Installation temperature min. 5 °C
Function maintenance E30/E90 (DIN 4102-12)
Plastic parts sin halógenos
Material slider/bottom part Poliamida, naranja
Material housing Poliamida, naranja
Material hood Poliamida, naranja
Fire load (KWh) 1,13 kWh

This product is a member of the following product systems

3011
Sistema de seguridad contra incendios Woertz FE180 E30/E90 3G6 mm² para el suministro de energía a elementos relevantes para la seguridad, como iluminación de emergencia y de vías de evacuación, siste...
