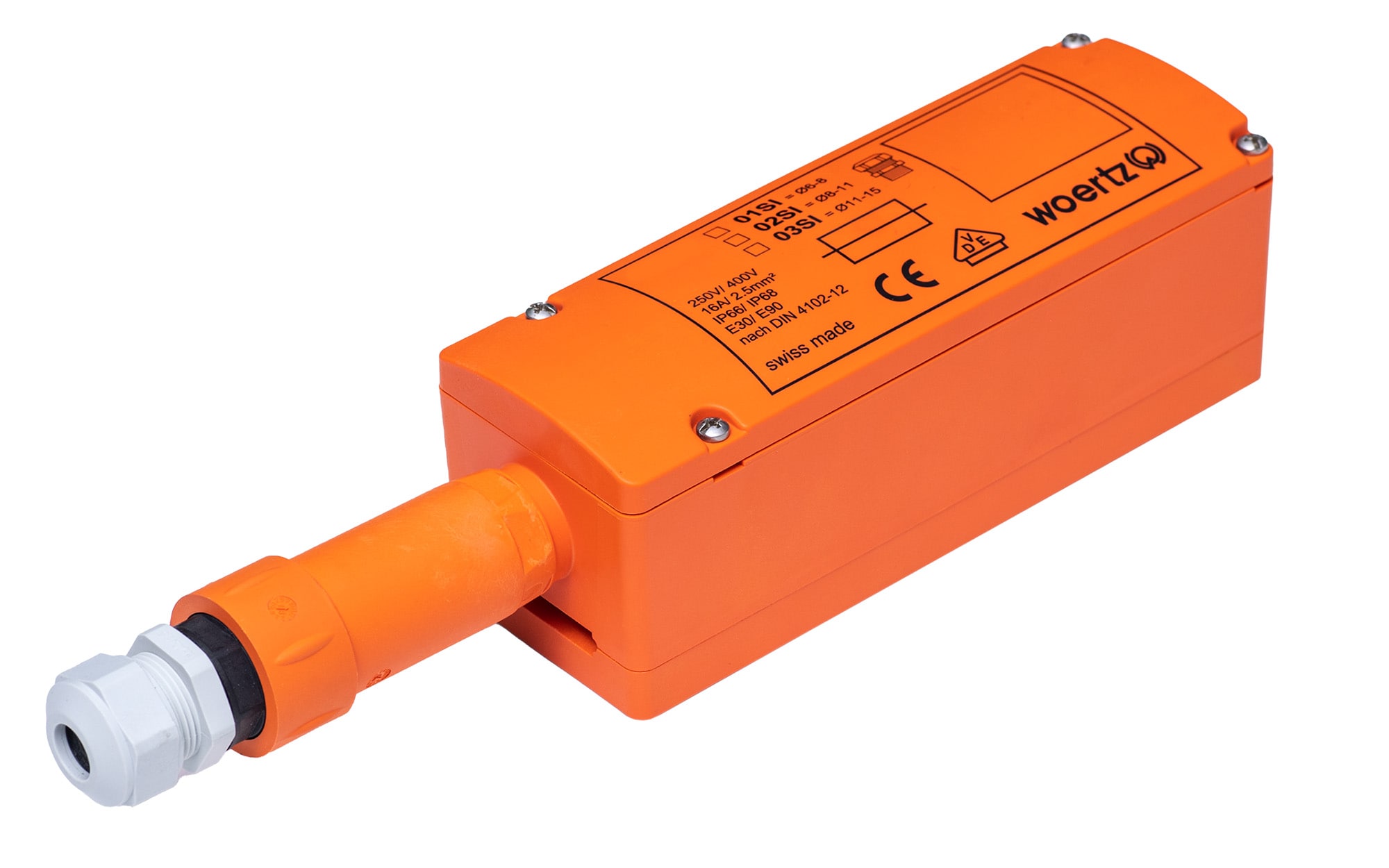

Box FC E90 5G6 with fuse

Box FC E90 5G6 with fuse

Article number: 48753/SI
Branching box E90 with fuse adapter IP66/68 for flat cable FE180 E90 5G6.0mm ²  with 3 cable glands M20x1.5  Ø6.0 -15.0mm Project specific design on request (see Document/G00'299)
Base Unit Piece
Dimensions length x width x height (mm) 295x50x49 mm
availability Delivery according to agreement
Number of poles 5 pole
Color orange
Files
Declaration of Conformity
Instruction manual
Characteristics
Base Unit Piece
availability Delivery according to agreement
group 170000
country of origin CH
Customs tariff number 8536.9080
Color orange
Technical data
Dimensions length x width x height (mm) 295x50x49 mm
Dimensions length x width x height (inch) 11,61x1,96x1.92 inch
Degree of protection IP66/IP68 (2m,30min)
Metal parts Metalteile:V4A / Kontaktierung : Cu-Legierung
Flat cable contacting type Piercing-Kontaktierung (Schraube)
Number of poles 5 pole
Contacting type Screw terminal
Connection conductor (mm²) 5x6,0 mm²
Thread cable gland M20x1.5
Rated current heavy current part (A) 16 A
Rated voltage heavy current part (V) 250/400 V
Fuse Three-phase (For ceramic fuse 5x20 mm)
Operating Temperature (°C) -15 bis 85 °C
Installation temperature min. (°C) 5 °C
Function maintenance E30/E90 (DIN 4102-12)
Plastic parts Halogenfrei
Material slider/bottom part Polyamid, schwarz
Material housing Polyamid
Material hood Polyamid
Fire load (KWh) 2,16 kWh
Product accessories
Retaining plate to connection box 48353-55/48653-55
Article number 48354
Base Unit Piece
availability Delivery according to agreement
Price on demand
This product is a member of the following product systems
40700
Woertz fire safety system FE180 E30/E90 5G6 mm² for power supply of safety-relevant elements, such as emergency and escape route lighting, smoke extraction systems or fire department elevators.
