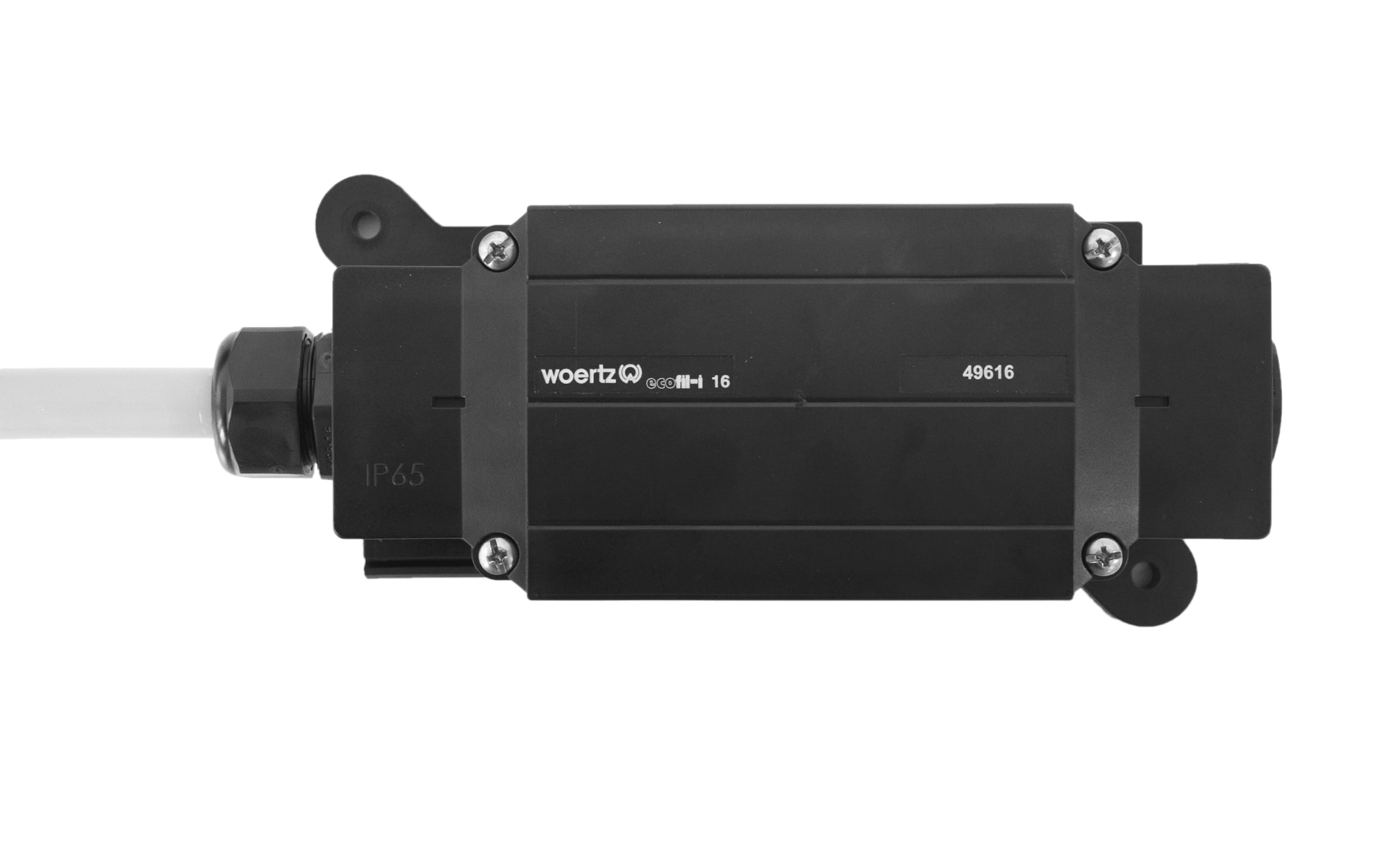

Junction box Pre-assembled for flat cable 49615 3M HF-K 5G16
Article number: 49615/1x5G16/30
Price on demand
Pre-assembled junction box 5-pole 5G16mm²/5G25mm² including fastening and 1 threaded connector M40x1.5 for 1 outgoing circuit. With cable gland 49635 and pre-assembled round cable 5G16mm² 3 m, with free end.
Tender text
Junction box Pre-assembled for flat cable 49615 3M HF-K 5G16 (49615/1x5G16/30): Pre-assembled junction box 5-pole 5G16mm²/5G25mm² including fastening and 1 threaded connector M40x1.5 for 1 outgoing circuit. With cable gland 49635 and pre-assembled round cable 5G16mm² 3 m, with free end.
Copy
| Box Type | Junction boxes |
| Dimensions length x width x height (mm) | 3200x85x91 mm |
| Degree of protection | IP65 |
| Metal parts | Corrosion protected |
| Flat cable contacting type | Piercing contact (screw) EN 60998-2-3 |
| Number of poles | 5 pole |
| Contacting type | Screw terminal |
| Connection conductor (mm²) | 5x16 mm² |
| Thread cable gland | with cable gland M40x1.5 |
| Rated current heavy current part (A) | 76 (16 mm²) / 80 (with flat cable 5x25mm²) A |
| Rated voltage heavy current part (V) | 690 V |
| Cable length (m) | 3,0 m |
| Halogen free | Yes |
| Reaction to fire classification | Cca s1 d1 a1 |
| Cross section (mm²) | 5x16 mm² |
| Copper conductor | Fine stranded KL5 EN60228 |
| cores insulation | Flame retardant polyolefin |
| Cores colors | gray,black,brown,blue,green/yellow |
| Sheat insulation | Polyolefin flame retardant |
| Minimum bending radius | 6xD |
| Operating Temperature | -15 to 85 °C |
| Installation temperature min. | 5 °C |
| Plastic parts | halogen-free |
| Material slider/bottom part | Polyamide, black |
| Material housing | Polyamide, black |
| Material hood | Polyamide, black |
| Number Screwdriver Pointed screws Heavy current part | |
| Number Screwdriver Clamping screws Heavy current part | Torx 25 |
