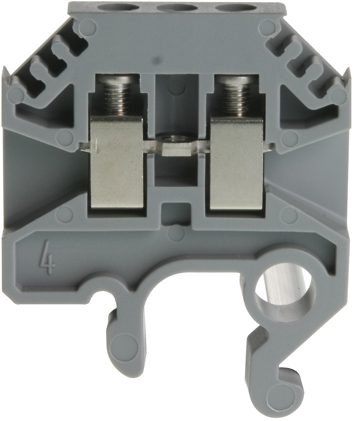

Terminal block DIN32 2.5mm² gray

Article number: 3700GR

Eldas number: 158220137

Price on demand

Terminal block DIN32 2.5mm² gray. For mounting rail according to EN 50035-G 32 Insulating body, made of polyamide 6.6 3-digit marking option on both sides Clamping yoke and connecting bar made of nickel-plated brass Screws made of stainless steel Metal parts captive. For cross connections via clamps. Protective clamps with connection to the mounting rail.

Base Unit	Piece
availability	Delivery in 4 weeks
Weight (g)	8,1 g

Tender text

Terminal block DIN32 2.5mm² gray (3700GR): Terminal block DIN32 2.5mm² gray. For mounting rail according to EN 50035-G 32 Insulating body, made of polyamide 6.6 3-digit marking option on both sides Clamping yoke and connecting bar made of nickel-plated brass Screws made of stainless steel Metal parts captive. For cross connections via clamps. Protective clamps with connection to the mounting rail.

Copy

Product data sheet
3700GR - Terminal block DIN32 2.5mm² gray.pdf

Files
Declaration of Conformity	rohs_and_reachV01.pdf
Certificate	ESTI_bew_23.0232_Certi.pdf

Characteristics
Base Unit	Piece
availability	Delivery in 4 weeks
EAN Code	7611718203114
group	165000
Packaging unit	50
country of origin	CH
Customs tariff number	8536.9080
Weight (g)	8,1 g

Technical data
DIN rail type	DIN-32
Insulating material	PA66
Head reception room width x height (mm)	2.7 x 3 mm² mm

Rating data according to UL 1059
Nominal cross section (AWG)	2.5 mm² AWG

This product is a member of the following product systems

Terminal blocks DIN32 2.5mm²-70mm²

1000

Various terminal blocks DIN32 2.5mm²-70mm².
