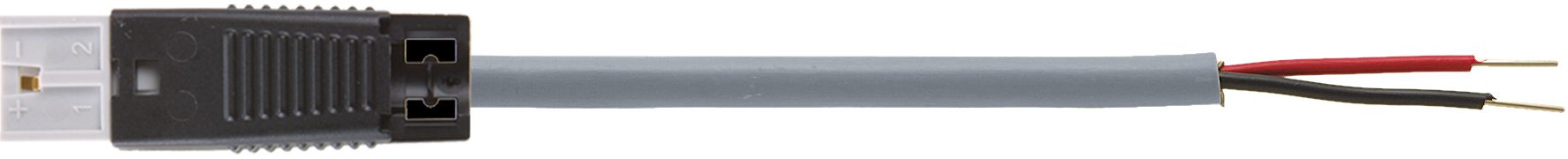

Pre-wired connector BUS CW-M 2x0.5mm² 1 m HF
Article number: 49347/1M
Price on demand
Connection cable, halogen-free, 1 meter, pre-confection with 1x plug 2-pole, code Woertz, gray
| Base Unit | Piece |
| Dimensions length x width x height (mm) | 1000 x 14.8 x 11.8 mm |
| availability | Delivery according to agreement |
| Number of poles | 2 pole |
| Weight (g) | 29.9 g |
| Color | gray |
| Coding plug connection | Code Woertz |
| Construction (mm²) | 2x0.5 mm² |
| Cable length (m) | 1 m |
| Halogen free | Yes |
| Reaction to fire classification | Dca s1 d2 a1 |
| Sheath color | Gray |
Tender text
Pre-wired connector BUS CW-M 2x0.5mm² 1 m HF (49347/1M):
Copy
| Dimensions length x width x height (mm) | 1000 x 14.8 x 11.8 mm |
| Dimensions length x width x height (inch) | 39 x 0.58 x 0.49 inch |
| Degree of protection | IP20 |
| Number of poles | 2 pole |
| Material | Polyamide |
| Construction (mm²) | 2x0.5 mm² |
| Rated current heavy current part (A) | 3 A |
| Rated voltage heavy current part (V) | 50 V |
| Cable length (m) | 1 m |
| Halogen free | Yes |
| Cable type | Halogen free cables |
| Reaction to fire classification | Dca s1 d2 a1 |
| Cross section -BUS (mm²) | 0,5 mm² |
| BUS-Copper conductor | Copper wire 0.8 mm |
| BUS-Cores insulation | Polyethylene |
| BUS-Cores colors | White, Blue |
| BUS-Screen | Aluminum foil |
| Sheat insulation | Polyolefin flame retardant |
| Sheath color | Gray |
| Minimum bending radius | 6xD |
| Operating Temperature (°C) | -20 till 70 °C |
| Installation temperature min. (°C) | 5 °C |
| BUS-Rated voltage (V) | 50 V |
| Halogen free acc. to | IEC/EN60754-1/2 |
| Flame retardant according to | IEC/EN60332-1-2 |
| Minimal smoke emision acc. to | IEC/EN 61034-2 |
This product is a member of the following product systems
Suitable BUS connectors and connecting cables for the following systems:
- Data 2x1.5 mm²
- Combi 5G2.5 mm²
- Combi 5G2.5 mm² KNX
- Dali 3G2.5 2x1.5 mm²
- Dali 5G2.5 2x1.5 mm²
5050
BUS connectors code Woertz, code KNX, code 3.
