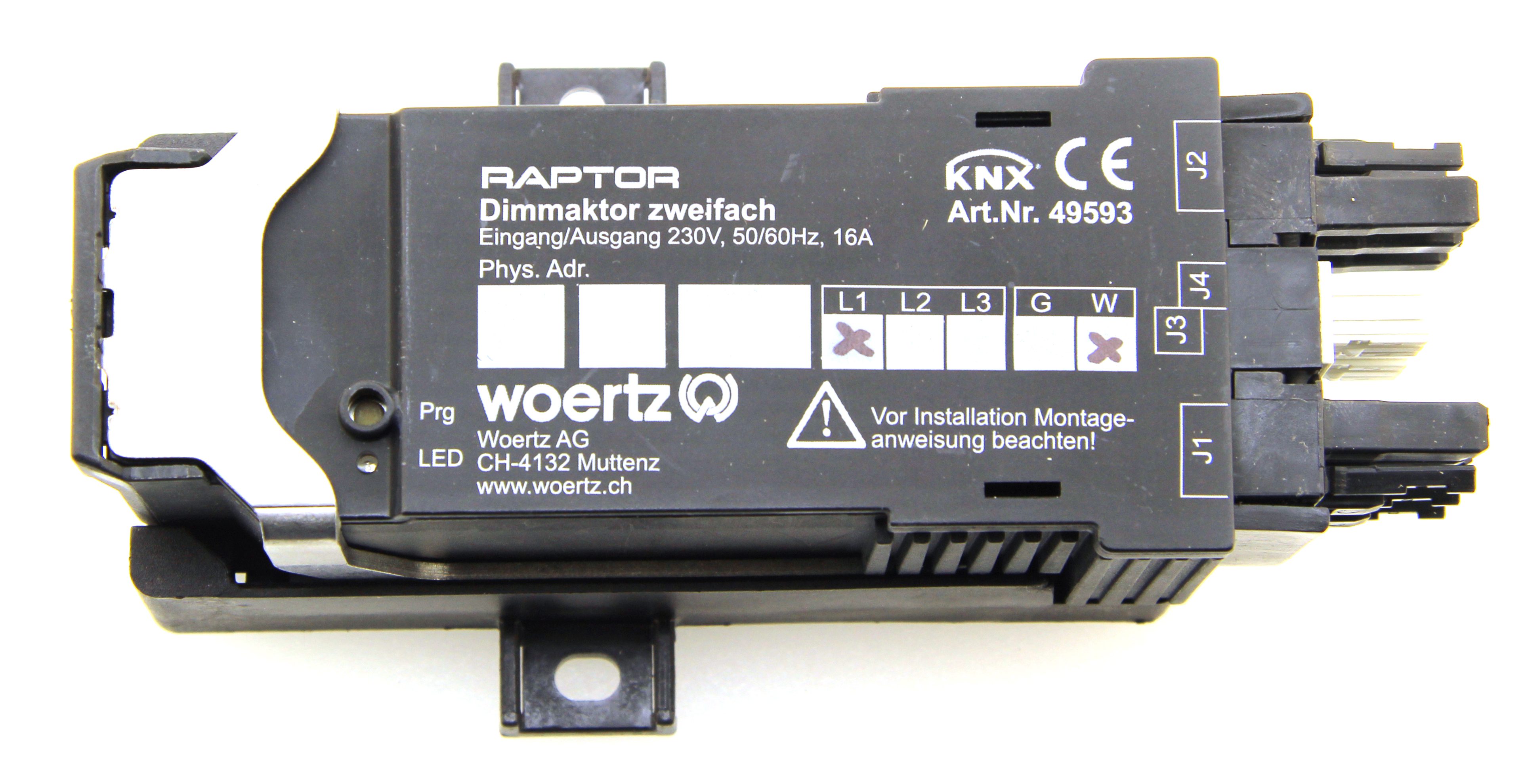

Raptor dimming actuator 2-fold - KNX - L1 - Winsta®
Article number: 49593W/L1
ELDAS® number: 405442117
Price on demand
Decentralised dimmer actuator KNX/EIB to ecobus combi
- with plug-type output WINSTA
output control voltage dimmer 2x1-10VDC
- power output 230V 16A
- IP 20
Tender text
Raptor dimming actuator 2-fold - KNX - L1 - Winsta® (49593W/L1): Decentralised dimmer actuator KNX/EIB to ecobus combi
- with plug-type output WINSTA
output control voltage dimmer 2x1-10VDC
- power output 230V 16A
- IP 20
Copy
| Dimensions length x width x height (inch) | 5.55x2.91x2.17 inch |
| Degree of protection | IP20 |
| Flat cable contacting type | Doordringend contact (mes) EN 60998-2-3 |
| Material | PA 6,6 |
| Configuration mode | S-mode |
| Type of connection | 3-polig stopcontact |
| Plug-in system | Winsta® MIDI |
| Number of channels | 2 |
| Type of mounting | Platte kabel Woertz combi 5G2,5 2x1,5 mm2 |
| Transmission media | KNX TP1 |
| Operating Temperature | -5 - 45 °C |
| Installation temperature min. | 10 °C |
| Rated current per channel (A) | 16 A |
| Contact to flat cable | L1NPE KNX |
| Operating voltage | 230 VAC ± 10 % |
| KNX bus voltage (type) | 29 VDC SELV Typ |
| Switching voltage (VAC) | 230 VAC |
| Plug-in system DIM outputs | Code Woertz |
| Plug-in connection DIM outputs | 2-polige Buchse |
| DIM control voltage | 1-10 VDC |
