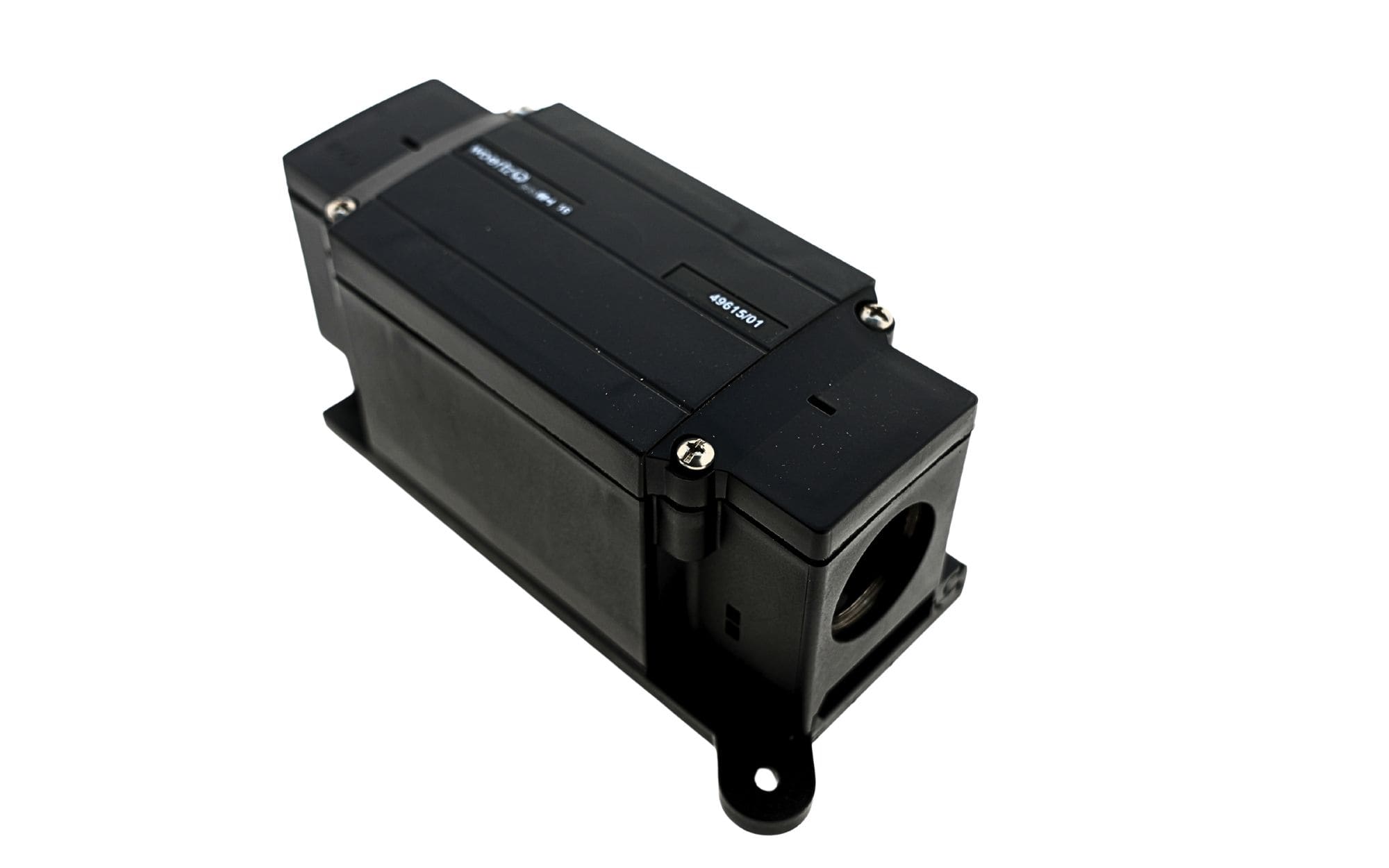

Junction box for flat cable 5G16mm²/5G25mm² IP65 with selectable connection side
Article number: 49615/01
Price on demand
Junction box IP65 for infeed or branching 5-pole 3LNPE, for flat cable Woertz 5G16mm²
or 5G25mm², with selectable connection side, for cables up to 5x16mm², with threaded connector and threaded nut M40x1.5, including sealing plug M40x1.5 with fastening option, halogen-free, corrosion-protected.
Tender text
Junction box for flat cable 5G16mm²/5G25mm² IP65 with selectable connection side (49615/01): Junction box IP65 for infeed or branching 5-pole 3LNPE, for flat cable Woertz 5G16mm²
or 5G25mm², with selectable connection side, for cables up to 5x16mm², with threaded connector and threaded nut M40x1.5, including sealing plug M40x1.5 with fastening option, halogen-free, corrosion-protected.
Copy
| Box Type | Junction boxes |
| Dimensions length x width x height (mm) | 200x85x91 mm |
| Dimensions length x width x height (inch) | 7,87x3,35x3,58 inch |
| Degree of protection | IP65 |
| Metal parts | Corrosion protected |
| Flat cable contacting type | Piercing contact (screw) EN 60998-2-3 |
| Number of poles | 5 pole |
| Contacting type | Screw terminal |
| Connection conductor (mm²) | 5x16 mm² mm² |
| Thread cable gland | M40x1.5 |
| Rated current heavy current part (A) | 76 (16 mm²) / 80 (with flat cable 5x25mm²) A |
| Rated voltage heavy current part (V) | 690 V |
| Resistance to impact | IK08 |
| Operating Temperature | -15 to 85 °C |
| Installation temperature min. | 5 °C |
| Plastic parts | halogen-free |
| Material slider/bottom part | Polyamide, black |
| Material housing | Polyamide , black |
| Material hood | Polyamide, black |
| Number Screwdriver Pointed screws Heavy current part | 2 |
| Operating torque of pointed screws for heavy current section (Nm) | 3,7 Nm |
| Number Screwdriver Clamping screws Heavy current part | Kreuzschlitz Nr.2 |
| Tightening torque for clamping screw (Nm) | 2 Nm |
| Fire load (KWh) | 3,3 kWh |
Product accessories
M40x1.5 diameter of cables Ø 19-28mm of plastic material for boxes No. 49615
| Article number | 49635 |
| ELDAS® number | 121720807 |
| Base Unit | Piece |
| availability | available from stock |
| Dimensions length x width x height (mm) | 30x10x31 |
| Weight (g) | 75,47 |
Cable gland M40x1.5 clamping range Ø 22-32mm plastic to junction boxes no. 49615
| Article number | 49636 |
| ELDAS® number | 121730807 |
