Attachments type IP54
Multi-purpose aluminum connection attachments and enclosures for your individual requirements
Our high quality aluminum connection attachments and enclosures designed specifically for your individual requirements. With their robust construction, flexible connection options and appealing aesthetics, they offer the perfect solution for your project requirements.
- Dimensions: 218x100x100 mm
- Base plate
- Connection attachment
Consisting of aluminum housing, with its dimensions 218x100x100 mm, bottom flange 130x130 mm, aluminum 4-sided tube with ø 63 hole, 4 mounting holes M3, screw-on cast aluminum cover 106x106mm, including O-ring seal RAL 9010 pure white.
| Article number | 64980 |
| Eldas number | 127930007 |
| Base Unit | Piece |
| availability | Delivery according to agreement |
Consisting of aluminum housing, with its dimensions 218x100x100mm, bottom flange 130x130mm, aluminum 4-sided tube with ø 63 hole, 4 M3 mounting holes, screw-on cast aluminum cover 106x106mm. Including O-ring seal. Color according to individual choice.
| Article number | 64981 |
| Base Unit | Piece |
| availability | Delivery according to agreement |
| Color | Color for choice |

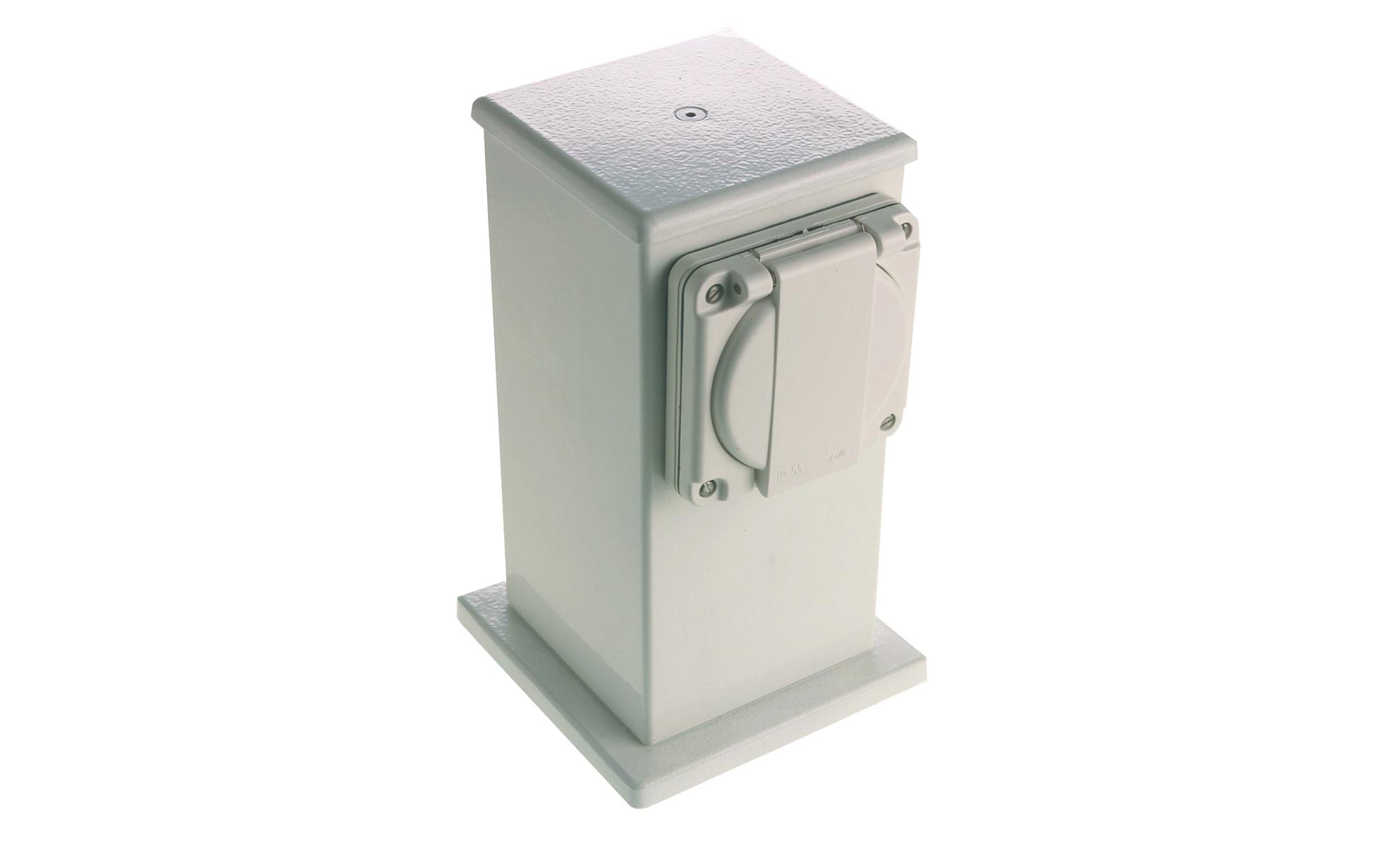

White aluminum connection top with IP54 protection. Dimensions: 218x100x100mm, with bottom flange (130x130mm) and O-ring seal. Equipped with an aluminum square tube, 2 ø 63 holes, 4 M3 mounting holes and a screw-on cast aluminum cover (106x106mm) with O-ring seal. Color: RAL 9010 pure white.
| Article number | 64982 |
| Eldas number | 127930107 |
| Base Unit | Piece |
| availability | Delivery according to agreement |
White aluminum connection attachment with its dimension: 318x100x100 mm, bottom flange 130x130 mm, with O-ring seal, aluminum square tube with 4 pcs. Hole ø 63, with 4 fixing holes M3 and screw-on cast aluminum cover 106x106 mm with O-ring seal, color: RAL 9010 Pure white.
| Article number | 64984 |
| Eldas number | 127930207 |
| Base Unit | Piece |
| availability | Delivery according to agreement |
| Article number | 64986 |
| Eldas number | 127952007 |
| Base Unit | Piece |
| availability | Delivery according to agreement |
| Weight (g) | 451,2 |
