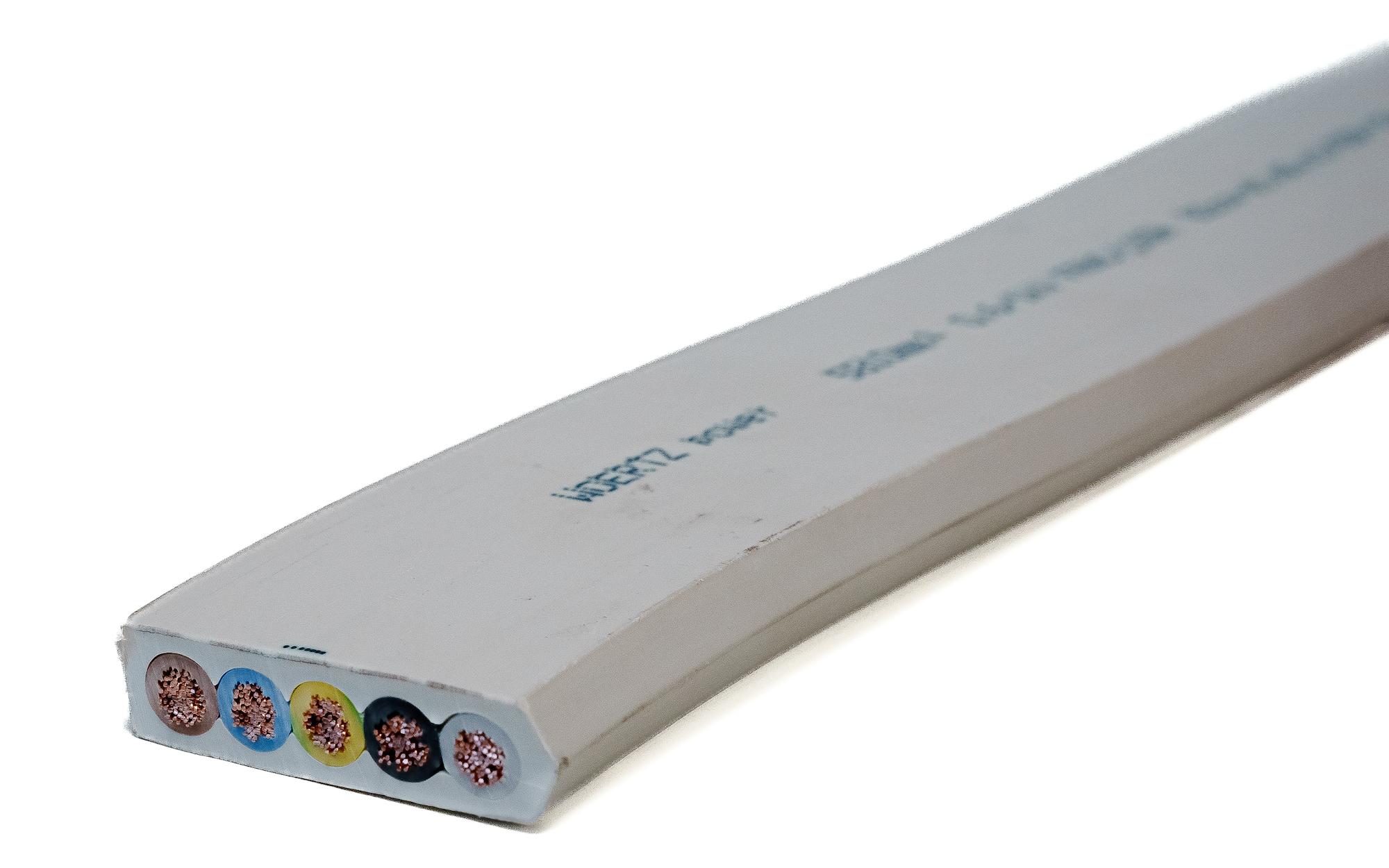

Flat cable Power 5G10² HF GY
Article number: 49885
ELDAS® number: 113389504
Price on demand
Flat cable Woertz Power 0.6/1.0kV, 5x10mm², halogen-free, HFFR, light
gray, 3LNPE, reaction to fire class: B2ca s1a d0 a1
Tender text
Flat cable Power 5G10² HF GY (49885): Flat cable Woertz Power 0.6/1.0kV, 5x10mm², halogen-free, HFFR, light
gray, 3LNPE, reaction to fire class: B2ca s1a d0 a1
Copy
| Construction | 5x10 mm² |
| Dimensions width x height (mm) | 38.5x10 mm |
| Halogen free | Yes |
| Cable type | Halogen free flat cable |
| International designation | N1Z1Z1H2-K |
| Reaction to fire classification | B2ca s1a d0 a1 |
| Fire behavior | Cables with non-critical behavior (according to VKF 14-15) |
| Cross section (mm²) | 10 mm² |
| Copper conductor | bare, fine wire KL5 EN60228 |
| Conductor resistance (ohm/km) | 1,91 ohm/km |
| cores insulation | Flame retardant polyolefin |
| Cores colors | brown,blue,green/yellow,black,gray |
| Sheat insulation | Polyolefin flame retardant |
| Sheath color | Light gray |
| Minimum bending radius | 6xH |
| Operating Temperature | -25 till 90 °C |
| Installation temperature min. | 5 °C |
| Nominal voltage (VAC) | 600/1000 VAC |
| Test voltage | 4 kV/50Hz |
| Fire load (kWh/m) | 1,82 |
| Halogen free acc. to | IEC/EN60754-1/2 |
| Flame retardant according to | IEC/EN60332-1-2 |
| Minimal smoke emision acc. to | IEC/EN 61034-2 |
| Low fire propagation acc. To | IEC/EN 60332-3-24 |
Product accessories
| Article number | 49977 |
| ELDAS® number | 120000007 |
| Base Unit | Piece |
| availability | Delivery in 4 weeks |
| Weight | 6,500 g |
Cable clamps Woertz Flat cable E90 for vertical installation 38-52/10-
12mm, in stainless steel V4A, rollers made of ceramic insulation
| Article number | 49387 E90 |
| ELDAS® number | 120015007 |
| Base Unit | Piece |
| availability | Delivery in 4 weeks |
| Dimensions length x width x height (mm) | 101.5x38x48 |
| Weight | 107 kg |
End piece Woertz , for Flat cable 38,5x10mm, 5G10mm², transparent,
polycarbonate, halogen-free
| Article number | 49972 |
| ELDAS® number | 120900007 |
| Base Unit | Piece |
| availability | Delivery in 4 weeks |
| Dimensions length x width x height (mm) | 15x56x12 |
| Weight | 11,500 g |
End piece Woertz, shrink cap, for Flat cable 42/15mm, 5G10/FE
3G4/5G4/5G6mm², black, IP68, with sealing compound
| Article number | 48511/42 |
| Base Unit | Piece |
| availability | Delivery in 4 weeks |
| Weight | 31,250 g |
| Article number | 49632 |
| ELDAS® number | 150901147 |
| Base Unit | Meter |
| availability | Delivery according to agreement |
| Weight | 106 |
| Article number | 49976 |
| ELDAS® number | 983050727 |
| Base Unit | Piece |
| availability | Delivery according to agreement |
| Dimensions length x width x height (mm) | 160x90x55 |
| Weight | 59 |
| Article number | 49937 |
| Base Unit | Piece |
| availability | available from stock |
| Dimensions length x width x height (mm) | 580 |
| Weight | 450 |
This product is a member of the following product systems
1220
This system is used in hospitals, shopping malls, data centers, for hall lighting, hotels and catering Stetten.
1225
Secure reliable power supply for tunneling, civil engineering, industrial plants, workshops and joineries with our high quality flat cable system - perfectly protected by IP-65.
