Parapet trunking system BRK 4675 140x90

Parapet trunking system BRK 4675 140x90

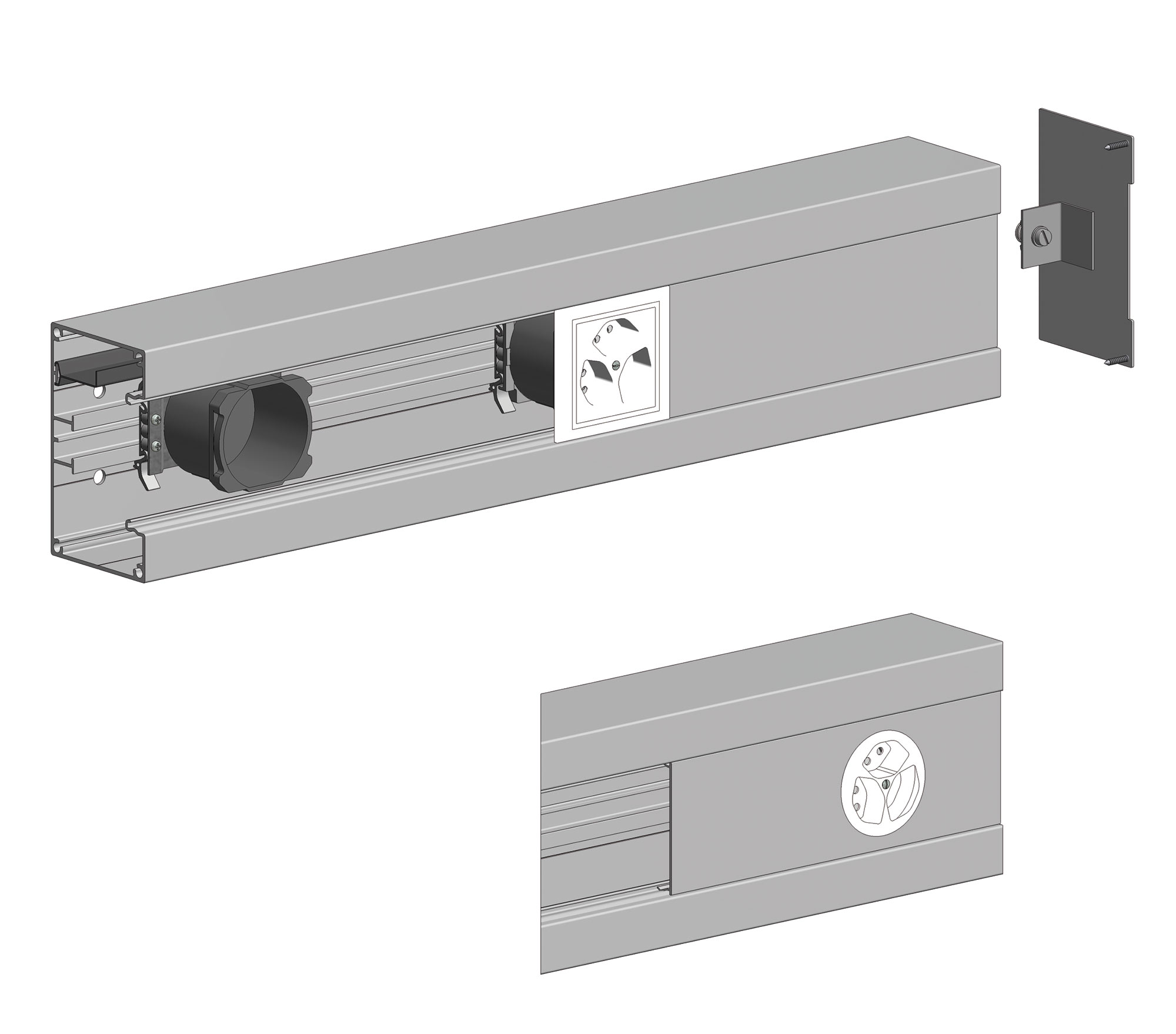

Parapet channel 4675 140x90 mm. Often used for the development of MVE 4675.
  • Accessories
  • Balance plate
  • Cable tie plate
  • Cable tray
  • Channel shell
  • Connecting bolt
  • Connection set
  • Connection terminal
  • Connector
  • End wall
  • Mounting plate
  • Plug-in lid
made of aluminum profile 2.2mm with combination rail for mounting the installation apparatus
including connecting material and ground wire
Color: RAL 9010 pure white
Length: 2000mm
Article number 53700
Base Unit Piece
availability Delivery according to agreement
Weight (g) 6300
Price on demand
made of aluminum profile 2.2mm with combination rail for mounting the installation apparatus
including connecting material and ground wire
Color: at choice
Length: 2000mm
Article number 53701
Base Unit Piece
availability Delivery according to agreement
Weight (g) 6300
Price on demand
made of aluminum profile 2.2mm , colorless anodized with combination rail for mounting the installation apparatus
including connecting material and ground wire
Length: 2000mm
Article number 53702
Eldas number 127500167
Base Unit Piece
availability Delivery according to agreement
Weight (g) 6300
Price on demand
consisting of: 1 pc. Connecting piece straight BRK/MEK to AS made of steel galvanized for straight connection
4 pcs. Connecting bolt straight / BRK/MEK 4675 made of steel galvanized nickel-plated for connecting the channel shell profiles. Dimension: ø 6x60mm
Article number 53714
Base Unit Piece
availability Delivery according to agreement
Weight (g) 215
Price on demand
made of steel galvanically nickel-plated for connecting the channel shell profiles
Dimension: ø 6x60mm Set of 4 pcs.
Article number 53070
Base Unit Piece
availability Delivery according to agreement
Weight (g) 50
Price on demand
made of galvanized steel for straight connection BRK/MEK 4670 / 4675
with hexagonal slotted screws made of galvanized steel M6x16, spring washers and sliding blocks
for insertion in profile rail no. 4383, type C30
Article number 53511
Eldas number 169004107
Base Unit Piece
availability Delivery according to agreement
Weight (g) 103
Price on demand
made of galvanized steel for inside miter 90° BRK/MEK 4670 / 4675
Article number 53535
Base Unit Piece
availability Delivery according to agreement
Weight (g) 200
Price on demand
made of steel galvanically nickel-plated for connecting the channel shells
90° inside and outside miter
Dimension: ø6x22x22mm Set of 4 pcs.
Article number 53071
Base Unit Piece
availability Delivery according to agreement
Weight (g) 30
Price on demand
for 90° inside miter consisting of: 1 pc. Connecting piece BRK/MEK IG90° to AS made of steel galvanized 4 pcs. Connecting bolt 90° / BRK/MEK 4675 made of steel galvanized nickel-plated for connecting the channel shell profiles with miter cut 45°. Dimension: ø6x22x22mm
Article number 53715
Base Unit Piece
availability Delivery according to agreement
Weight (g) 220
Price on demand
made of galvanized steel for external miter 90° BRK/MEK 4670 / 4675
Article number 53534
Base Unit Piece
availability Delivery according to agreement
Weight (g) 200
Price on demand
for 90° external miter consisting of: 1 pc. Connecting piece BRK/MEK AG90° to AS made of steel galvanized 4 pcs. Connecting bolt 90° / BRK/MEK 4675 made of steel galvanized nickel-plated for connecting the channel shell profiles with miter cut 45°. Dimension: ø6x22x22mm
Article number 53716
Base Unit Piece
availability Delivery according to agreement
Weight (g) 230
Price on demand
for 90° flat connection consisting of: 1 pc. Connecting piece BRK/MEK FV90° to AS made of steel galvanized 4 pcs. Connecting bolt 90° / BRK/MEK 4675 made of steel galvanized nickel-plated for connecting the channel shell profiles with miter cut 45°. Dimension: ø6x22x22mm
Article number 53710
Base Unit Piece
availability Delivery according to agreement
Weight (g) 250
Price on demand
made of steel galvanized for 90º flat connection BRK 4670 / 4675
Article number 53009
Base Unit Piece
availability Delivery according to agreement
Price on demand
made of aluminum profile 1.7mm color: RAL 9010 pure white
Length: 2000mm
Article number 53003
Base Unit Piece
availability Delivery according to agreement
Weight (g) 920
Price on demand
made of aluminum profile 1.7mm color: at choice
Length: 2000mm
Article number 53004
Base Unit Piece
availability Delivery according to agreement
Weight (g) 920
Price on demand
made of aluminum profile 1.7mm , colorless anodized
Length: 2000mm
Article number 53005
Eldas number 127542067
Base Unit Piece
availability Delivery according to agreement
Weight (g) 920
Price on demand
made of aluminum profile 1.7mm color: RAL 9010 pure white
for EDIZIOdue socket spacing 100mm
Color: RAL 9010 pure white
Length: 30mm
Article number 53015
Base Unit Piece
availability Delivery according to agreement
Weight (g) 15
Price on demand
made of aluminum profile 1.7mm color: color: at choice
for EDIZIOdue socket spacing 100mm
length: 30mm
Article number 53016
Base Unit Piece
availability Delivery according to agreement
Weight (g) 15
Price on demand
made of aluminum profile 1.7mm colorless anodized
for EDIZIOdue socket spacing 100mm
Color: RAL 9010 Pure white
Length: 30mm
Article number 53017
Base Unit Piece
availability Delivery according to agreement
Weight (g) 15
Price on demand
made of aluminum profile 1.7mm color: RAL 9010 pure white
for EDIZIOdue socket spacing 120mm
Color: RAL 9010 pure white
Length: 50mm
Article number 53025
Base Unit Piece
availability Delivery according to agreement
Weight (g) 24
Price on demand
made of aluminum profile 1.7mm color: RAL 9010 pure white
for EDIZIOdue socket spacing 120mm
Color: at choice
Length: 50mm
Article number 53026
Base Unit Piece
availability Delivery according to agreement
Weight (g) 24
Price on demand
made of aluminum profile 1.7mm colorless anodized
for EDIZIOdue socket spacing 120mm
Color: RAL 9010 Pure white
Length: 50mm
Article number 53027
Base Unit Piece
availability Delivery according to agreement
Weight (g) 24
Price on demand
made of aluminum profile 1.7mm, for EDIZIOdue sockets distance 150mm
Color: RAL 9010 Pure white
Length: 80mm
Article number 53055
Base Unit Piece
availability Delivery according to agreement
Weight (g) 35
Price on demand
made of aluminum profile 1.7mm, for EDIZIOdue socket spacing 150mm
Color: at choice
Length: 80mm
Article number 53056
Base Unit Piece
availability Delivery according to agreement
Weight (g) 35
Price on demand
Made of aluminum profile 1.7mm , colorless anodized
for EDIZIOdue socket spacing 150mm
Length: 80mm
Article number 53057
Base Unit Piece
availability Delivery according to agreement
Weight (g) 35
Price on demand
made of aluminum profile 1.7mm color: RAL 9010 pure white
Length: 2000mm
Article number 53043
Base Unit Piece
availability Delivery according to agreement
Weight (g) 930
Price on demand
made of aluminum profile 1.7mm color: at choice
Length: 2000mm
Article number 53044
Base Unit Piece
availability Delivery according to agreement
Weight (g) 930
Price on demand
made of aluminum profile 1.7mm , colorless anodized
Length: 2000mm
Article number 53045
Price on demand
made of aluminum profile 1.7mm for socket CEE 16A 3P type 63
including extension bolts and fastening material
Color: RAL 9010 Pure white
Length 150mm
Article number 53050
Base Unit Piece
availability Delivery according to agreement
Weight (g) 180
Price on demand
made of aluminum profile 1.7mm for socket CEE 16A 3P type 63 and punching for LED voltage indicator, including extension bolt and fixing material. Color: RAL 9010 Pure white Length 150mm
Article number 53050/LED
Base Unit Piece
availability Delivery according to agreement
Weight (g) 180
Price on demand
made of aluminum profile 1.7mm, colorless anodized for socket CEE 16A 3P type 63
including extension bolt and fixing material
length 150mm
Article number 53051
Base Unit Piece
availability Delivery according to agreement
Weight (g) 180
Price on demand
made of aluminum profile 1.7mm for socket CEE 16A 5P type 75
including extension bolts and fastening material
Color: RAL 9010 Pure white
Length 150mm
Article number 53052
Base Unit Piece
availability Delivery according to agreement
Weight (g) 175
Price on demand
made of aluminum profile 1.7mm, colorless anodized for socket CEE 16A 5P type 75
including extension bolt and fixing material
length 150mm
Article number 53053
Base Unit Piece
availability Delivery according to agreement
Weight (g) 175
Price on demand
made of aluminum 1.5mm with 4 laterally recessed mounting screws with dowels
Color: RAL 9010 Pure White
Article number 53706
Base Unit Piece
availability Delivery according to agreement
Weight (g) 55
Price on demand
made of aluminum 1.5mm with 4 sideways countersunk fixing screws with dowels
Color: at choice
Article number 53707
Base Unit Piece
availability Delivery according to agreement
Weight (g) 55
Price on demand
0
made of aluminum 1.5mm, colorless anodized
with 4 laterally countersunk fixing screws with dowels
Article number 53708
Eldas number 127557167
Base Unit Piece
availability Delivery according to agreement
Weight (g) 55
Price on demand
made of sheet steel 1.5mm dimension 130x60x19mm with slot nut and screw to mount on anchor rail 29x15x2mm
Color: RAL 7032 pebble gray
Article number 53570/130
Base Unit Piece
availability Delivery according to agreement
Weight (g) 85
Price on demand
made of plastic PVC to hang into the channel shell color: white width: 38mm / length: 1850mm
Article number 52010
Eldas number 127569067
Base Unit Piece
availability Delivery according to agreement
Weight (g) 160
Price on demand
pack of 100, assorted thicknesses 1, 2, 3, 5 and 10mm
Article number 59014
Base Unit Piece
availability Delivery according to agreement
Weight (g) 405
Price on demand
to BRK 4675/...x90Fastening with anchoring studsHeight: 69.5mm
Article number 53035
Base Unit Piece
availability available from stock
Weight (g) 128
Price on demand
suitable for underground socket ZPA 4-gang JK Ø64, art. no. 53881
for BRK/MVE 4675/...x90
Article number 53949
availability available from stock
Weight (g) 106
Price on demand
suitable for ZPA 4-gang EDIZIOdue FKE underground socket, item no. 53883
for BRK/MVE 4675/...x90
Article number 53950
Base Unit Piece
availability available from stock
Weight (g) 107
Price on demand
for BRK 4671/...x79 suitable for screw cap. and BRK 4675/...x90 plug-in cap for JK apparatus Height: 63.5mm / installation depth: 68.5mm
Article number 53948
Base Unit Piece
availability Delivery according to agreement
Weight (g) 64
Price on demand
Mineral fiber braids wrapped and compacted with crossed wire meshPacking unit: 15 pcs.
Article number 59016
Base Unit Box
availability Delivery according to agreement
Weight (g) 650
Price on demand
mountable on DIN-35 rail consisting of:
1 pcs. Branch terminal 6mm² gray 30841GR
1 pcs. Branch terminal 6mm² blue 30841BL
1 pc. Branch terminal 6mm² green/yellow 30841E
including cover and support bolt.
Article number 53353
Base Unit Piece
availability Delivery according to agreement
Weight (g) 172
Price on demand
