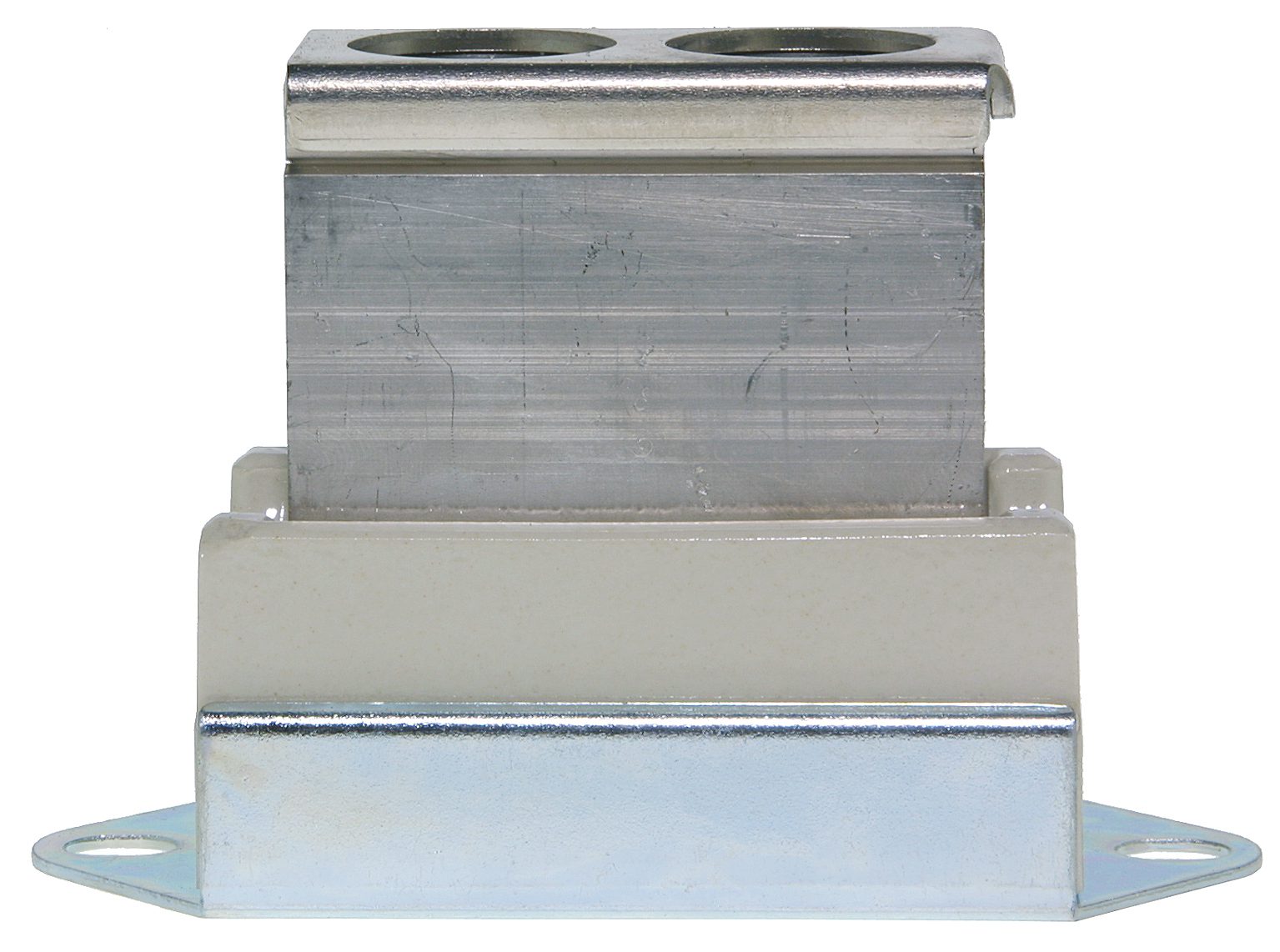

Branch terminals steatite base 120mm² white

Branch terminals steatite base 120mm² white

Article number: 2809
Eldas number: 158761107
Price on demand
Branch terminal with insulating body steatite glazed, pressure plate and inner hexagonal screws brass nickel plated
Base Unit Piece
Dimensions length x width x height (mm) 102x42.5x69 mm
availability Delivery according to agreement
Weight (g) 600 g
Color white
Tender text
Branch terminals steatite base 120mm² white (2809):
Copy
Characteristics
Base Unit Piece
availability Delivery according to agreement
EAN Code 7611718200595
group 165000
Packaging unit 1
country of origin CH
Customs tariff number 8536.9080
Weight (g) 600 g
Color white
Technical data
Dimensions length x width x height (mm) 102x42.5x69 mm
Dimensions length x width x height (inch) 4.02x1.67x2.72 inch
Cross section (mm²) 95 - 120 mm²
Nominal current (A) 250 A
Rated voltage (V) 1000 V
Connection type Screw terminal
Number of connection point 2
Number of floor 1
Number of potentials 1
Clamping screw M 2xSW10
Nominal Cross-section (mm²) 120 mm²
Head reception room width x height (mm) 15x31 mm
Rating data according to UL 1059
Rated voltage US (V) 600 V
Nominal cross section (AWG) 4 AWG
Cross-section (AWG) 3 - 4 AWG

This product is a member of the following product systems


Various branch terminals with steatite base.
