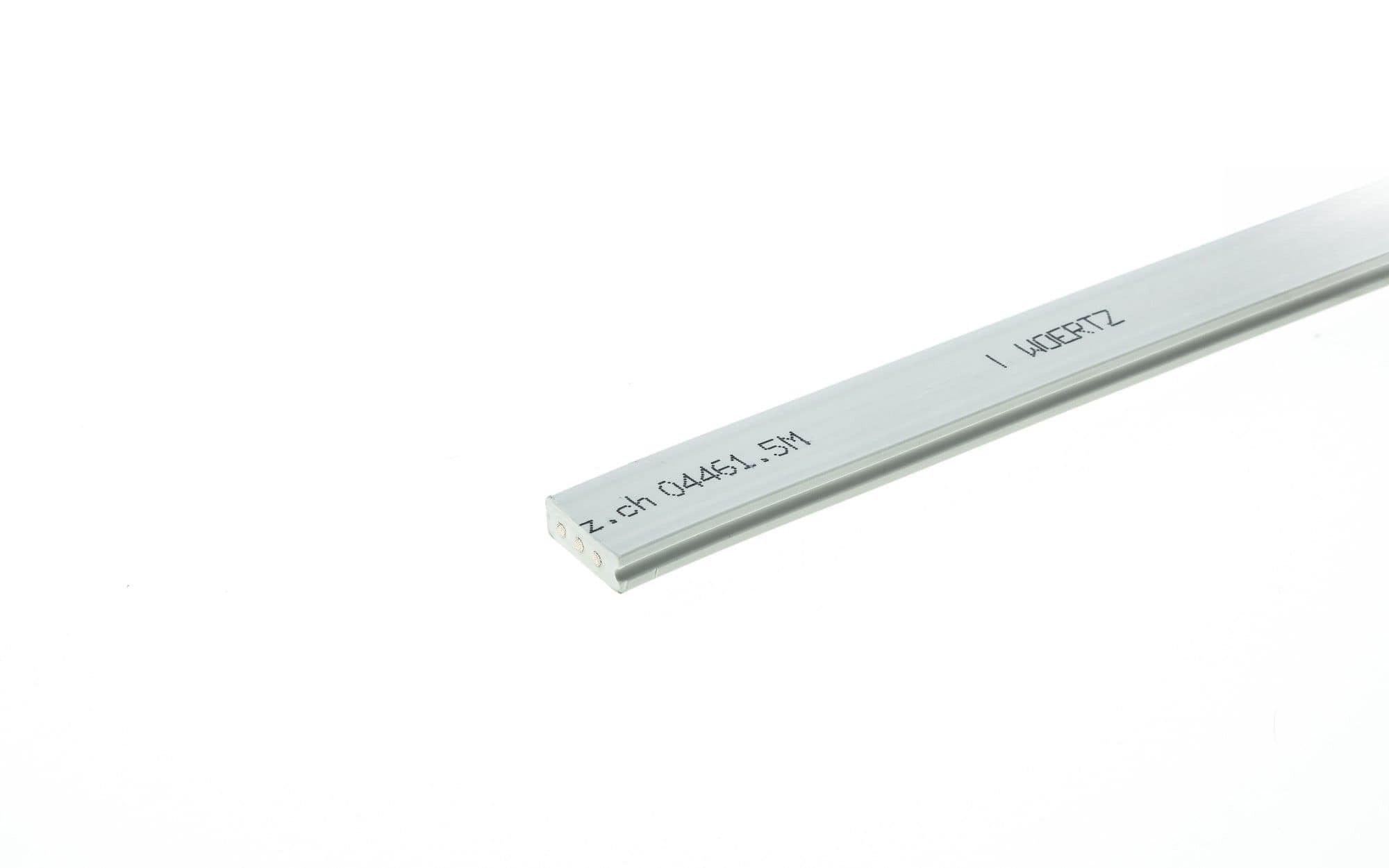

Flat cable 3x4² PVC GY DC oil

Article number: 49645/DC

Price on demand

Flat cable Woertz 0.6/1.0kV, 3x4mm² , PVC, light gray, wires: brown black grey, reaction to fire class: Eca, for DC applications, oil resistant

Base Unit	Meter
availability	Delivery according to agreement
Weight	500 g
Construction	3x4 mm²
Halogen free	No
International designation	N1VVH2-K
Reaction to fire classification	Eca
Sheath color	Light gray

Tender text

Flat cable 3x4² PVC GY DC oil (49645/DC): Flat cable Woertz 0.6/1.0kV, 3x4mm² , PVC, light gray, wires: brown black grey, reaction to fire class: Eca, for DC applications, oil resistant

Copy

Product data sheet
49645-DC - Flat cable 3x4² PVC GY DC oil.pdf

Files
Declaration of Conformity	Umwelterklärung Flachkabel.pdf
Declaration of Conformity	EU - Konformität_FlachKabel PVC.pdf
Declaration of Conformity	rohs_and_reachV01.pdf

Characteristics
Base Unit	Meter
availability	Delivery according to agreement
EAN Code	7611718282744
group	0170000
country of origin	CH
Customs tariff number	8544.4992
Weight	500 g
Copper weight (g)	115,200 g

Technical data
Construction	3x4 mm²
Dimensions width x height (mm)	16.5x6 mm
Halogen free	No
Cable type	PVC flat cable
International designation	N1VVH2-K
Reaction to fire classification	Eca
Cross section (mm²)	4 mm²
Copper conductor	Tinned, flexible KL5 EN60228
Conductor resistance (ohm/km)	5.09 ohm/km
cores insulation	PVC
Sheat insulation	PVC
Sheath color	Light gray
Oil resistance	EN 50363
Minimum bending radius	6xH
Operating Temperature	-15 till 70 °C
Installation temperature min.	5 °C
Nominal voltage (VAC)	600/1000 VAC
Test voltage	4 kV/50 Hz
Fire load (kWh/m)	0.58
Flame retardant according to	IEC/EN60332-1-2
