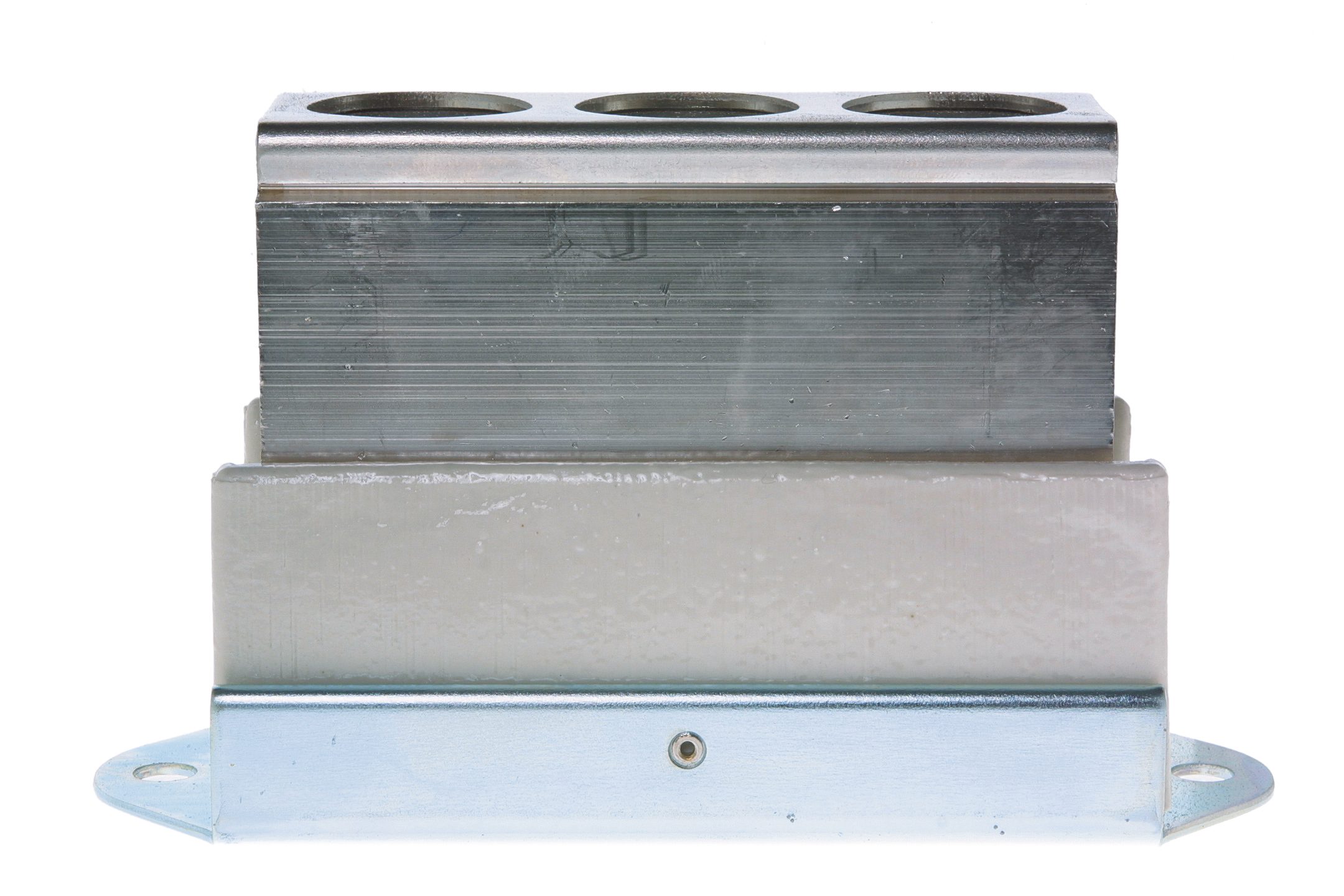

Branching terminal steatite base 300mm2 white

Branching terminal steatite base 300mm2 white

Article number: 2812
Eldas number: 158761507
Price on demand
Base Unit Piece
Dimensions length x width x height (mm) 170x64x99 mm
availability Delivery according to agreement
Weight (g) 2400 g
Color white
Tender text
Branching terminal steatite base 300mm2 white (2812):
Copy
Characteristics
Base Unit Piece
availability Delivery according to agreement
EAN Code 7611718200656
group 165000
Packaging unit 1
country of origin CH
Customs tariff number 8536.9080
Weight (g) 2400 g
Color white
Technical data
Dimensions length x width x height (mm) 170x64x99 mm
Dimensions length x width x height (inch) 6.69x2.52x3.90 inch
Cross section (mm²) 300 mm²
Nominal current (A) 500 A
Rated voltage (V) 1000 V
Connection type Screw terminal
Number of connection point 2
Number of floor 1
Number of potentials 1
Clamping screw M 3xSW14
Nominal Cross-section (mm²) 300 mm²
Head reception room width x height (mm) 23x51 mm
Rating data according to UL 1059
Rated voltage US (V) 600 V
Nominal cross section (AWG) 600 AWG
Cross-section (AWG) 600 - 600 AWG

This product is a member of the following product systems


Various branch terminals with steatite base.
