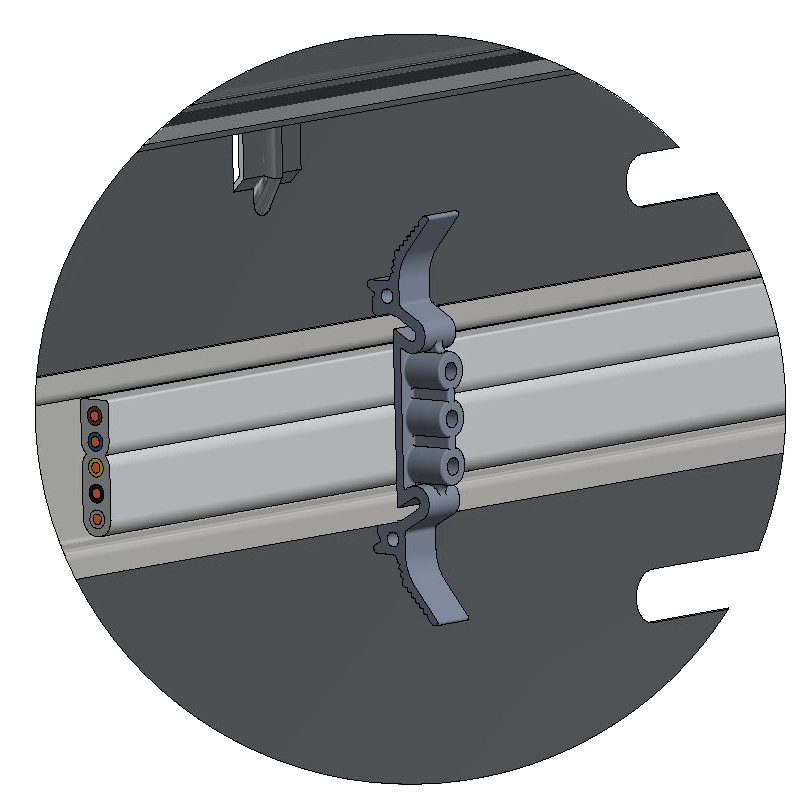

Cable fastener for clipping DIN35
Article number: 9072
ELDAS® number: 120068107
Price on demand
Bride for the assembly of apparatus
Tender text
Cable fastener for clipping DIN35 (9072): Bride for the assembly of apparatus
Copy
Product accessories
DIN35 rail with 35x15x2.3 mm, made of copper, with a 6 mm² copper cross section, 2 m length.
| Article number | 80290 |
| ELDAS® number | 168202027 |
| Base Unit | Meter |
| availability | Delivery in 4 weeks |
| Dimensions length x width x height (mm) | 53x26.5x39.5 |
| Weight (g) | 1084 |
DIN35 mounting rail with 35x7.5x1 mm, made of galvanized steel, with a 16 mm² copper cross-section, with mounting slots as well as Woertz lettering every 150 mm according to EN 60715 TH, with longitudinal hole, 2 m length.
| Article number | 3401/L |
| ELDAS® number | 168300129 |
| Base Unit | Meter |
| availability | available from stock |
| Dimensions length x width x height (mm) | 21.4x6x15.5 |
| Weight (g) | 330 |
DIN35 rail with 35x15x2.5 mm, made of galvanized steel, with a 50 mm² copper cross section according to EN 60715, 2 m length.
| Article number | 3490 |
| ELDAS® number | 168302039 |
| Base Unit | Meter |
| availability | Delivery in 4 weeks |
| Dimensions length x width x height (mm) | 45x21.5x36.5 |
| Weight (g) | 930 |
| Article number | 49900 |
| ELDAS® number | 113298007 |
| Base Unit | Meter |
| availability | available from stock |
| Weight (g) | 277 |
| Construction (mm²) | 5x2.5 |
| Halogen free | Yes |
| International designation | N1Z1Z1H2-K |
| Reaction to fire classification | B2ca s1a d0 a1 |
| Fire behavior | Cables with non-critical behavior (according to VKF 14-15) |
| Sheath color | Yellow |
Flat cable Woertz Technofil 5x2.5 mm² FR/LS0H yellow black stripe
| Article number | 49900/SM |
| ELDAS® number | 113298017 |
| Base Unit | Meter |
| availability | Delivery in 4 weeks |
| Weight (g) | 277 |
| Construction (mm²) | 5x2.5 |
| Halogen free | Yes |
| International designation | N1Z1Z1H2-K |
| Reaction to fire classification | B2ca s1a d0 a1 |
| Fire behavior | Cables with non-critical behavior (according to VKF 14-15) |
| Sheath color | Yellow Black Stripe |
| Article number | 9055 |
| ELDAS® number | 113308007 |
| Base Unit | Meter |
| availability | available from stock |
| Weight (g) | 275 |
| Construction (mm²) | 5x2.5 |
| Halogen free | No |
| International designation | N1VVH2-K |
| Reaction to fire classification | Eca |
| Sheath color | Black |
Flat cable Woertz Technofil 5x2.5 mm² PVC yellow black strip 3LNPE
| Article number | 9055/SM |
| ELDAS® number | 113308017 |
| Base Unit | Meter |
| availability | Delivery according to agreement |
| Weight (g) | 275 |
| Construction (mm²) | 5x2.5 |
| Halogen free | No |
| International designation | N1VVH2-K |
| Reaction to fire classification | Eca |
| Sheath color | Black |
Mounting rail DIN35 with 35x15x2.5 mm, made of galvanized steel, with a 50 mm² copper cross-section according to EN 60715, with longitudinal hole, 2 m length.
| Article number | 3490/L |
| ELDAS® number | 168302229 |
| Base Unit | Meter |
| availability | Delivery in 4 weeks |
| Dimensions length x width x height (mm) | 9.5x5.9 |
| Weight (g) | 890 |
DIN35 rail with 35x7.5x1mm, made of galvanized steel, with a 16 mm² copper cross section, unperforated, with Woertz lettering every 150 mm according to EN 60715 TH, 2 m length.
| Article number | 3401 |
| ELDAS® number | 168300029 |
| Base Unit | Meter |
| availability | available from stock |
| Dimensions length x width x height (mm) | 45x21.5x36.5 |
| Weight (g) | 360 |
DIN35 rail with 35x7.5x1 mm, made of VA4 steel, with a 16 mm² copper cross-section, 2 m long.
| Article number | 3401IN |
| ELDAS® number | 168300027 |
| Base Unit | Meter |
| availability | Delivery according to agreement |
| Dimensions length x width x height (mm) | 108.5x10x45 |
| Weight (g) | 365 |
