- Cable clamp
- Cable end piece
- Feed and junction box
- Flat cable
- Flat cable insulation tape
- Junction box
- Junction box
- Riser bride
- Stripping tongs
Flat cable Woertz Power IP 0.6/1.0kV, 5x6mm², halogen-free, HFFR, light
gray, 3LNPE, reaction to fire class: B2ca s1a d0 a1
| Article number | 48780/FRNC |
| ELDAS® number | 113279609 |
| Base Unit | Meter |
| availability | available from stock |
| Weight | 515 g |
| Construction | 5x6 |
| Halogen free | Yes |
| International designation | N1Z1Z1H2-K |
| Reaction to fire classification | B2ca s1a d0 a1 |
| Fire behavior | Cables with non-critical behavior (according to VKF 14-15) |
| Sheath color | Light gray |
Lateral Feed Box Woertz IP65, 5-pole , 3LNPE, for cable 5x6mm², for flat
cable Woertz Power IP 5G6mm², with fastening possibility, halogen-free,
corrosion-protected
| Article number | 48781/65 |
| Base Unit | Piece |
| availability | Delivery according to agreement |
| Dimensions length x width x height (mm) | 122x120x90 |
| Number of poles | 5 pole |
| Weight | 1163,100 g |
| Color | gray |

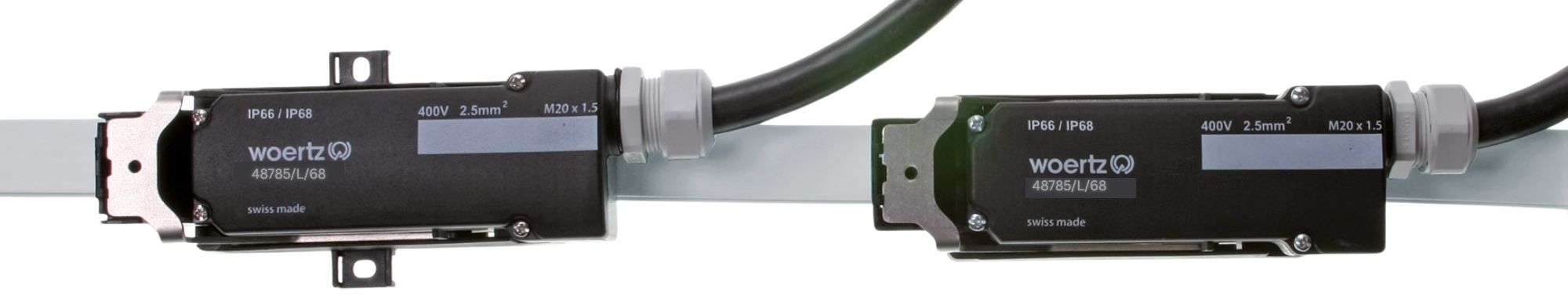

Quick-connection Box for supply or branching Woertz IP66/ IP68, 5-pole ,
3LNPE, for cable up to 5x4mm², for flat cable Woertz Power 5G6mm², mit
with thread 1x M20x1.5, halogen-free, corrosion-protected
| Article number | 48785/L/68 |
| Base Unit | Piece |
| availability | available from stock |
| Dimensions length x width x height (mm) | 155x50x55 |
| Number of poles | 5 pole |
| Weight | 220 g |
| Color | black |
Connection Box for supply or branching Woertz IP66/ IP68, 5-pole ,
3LNPE, for cable up to 5x4mm², for flat cable Woertz Power IP 5G6mm²,
with fastening possibility, mit with thread 1x M20x1.5, halogen-free,
corrosion-protected
| Article number | 48785/L/68/S |
| Base Unit | Piece |
| availability | available from stock |
| Dimensions length x width x height (mm) | 155x75x55 |
| Number of poles | 5 pole |
| Weight | 222 g |
| Color | black |
Branching Box Woertz IP66/ IP68, with fuse unit (5x20mm) to protect a
flat cable system against short circuits, M20 Ø6-15mm, for flat cable
Woertz Power IP 5G6mm², with fastening possibility, halogen-free,
corrosion-protected
| Article number | 48785/S/SI |
| Base Unit | Piece |
| availability | available from stock |
| Dimensions length x width x height (mm) | 275x50x55 |
| Number of poles | 5 pole |
| Weight | 0,010 g |
| Color | black |
Branching Box Woertz IP66/ IP68, with output with pre-wired socket, plug
to be wired, M20 Ø6-15mm, for flat cable Woertz Power IP 5G6mm², with
fastening possibility, halogen-free, corrosion-protected
| Article number | 48785/S/ST |
| Base Unit | Piece |
| availability | available from stock |
| Dimensions length x width x height (mm) | 275x50x55 |
| Number of poles | 5 pole |
| Weight | 361 g |
| Color | black |
Lateral Feed/joint Box-Fire protection box E90 Woertz IP66/ IP68, for
flat cable Woertz E90 5G2,5/4/6mm², halogen-free, corrosion-protected
| Article number | 48958 |
| Base Unit | Piece |
| availability | Delivery according to agreement |
| Dimensions length x width x height (mm) | 35x30x24.5 |
| Number of poles | 5 pole |
| Color | white |
| Fire behavior | V0 (UL94) |
End piece Woertz, shrink cap, for Flat cable 24/8mm, 5G6mm², black,
IP68, with sealing compound
| Article number | 48511/24 |
| Base Unit | Piece |
| availability | available from stock |
| Weight | 9 g |
| Article number | 49978 |
| Base Unit | Piece |
| availability | Delivery in 4 weeks |
| Weight | 6,500 g |
Cable clamps Woertz Flat cable E90 for vertical installation 23-37/6-
8mm, in stainless steel V4A, rollers made of ceramic insulation
| Article number | 49386 E90 |
| ELDAS® number | 120013007 |
| Base Unit | Piece |
| availability | Delivery in 4 weeks |
| Dimensions length x width x height (mm) | 91.5x71.5x48 |
| Weight | 0,090 kg |
Woertz flat cable shears up to 5x6 mm² (with higher force up to 5x16 mm²)
| Article number | 49935 |
| Base Unit | Piece |
| availability | available from stock |
| Dimensions length x width x height (mm) | 24.5 |
| Weight | 475,23 |
Insulating tape for flat cable 102x100x2.3 mm, for the proper insulation
of the piercing holes of connection boxes, e.g. when relocating or
removing them; weather-resistant, cold self-vulcanizing.
| Article number | 49960 |
| ELDAS® number | 171013007 |
| Base Unit | Piece |
| availability | Delivery in 4 weeks |
| Dimensions length x width x height (mm) | 102×100×2.3 |
| Weight | 32,500 g |
