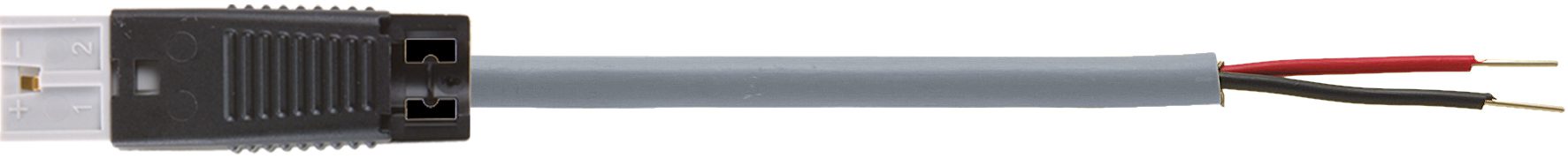

Connecting cable Woertz C Woertz-M 2x0.5² 2m, halogen-free Bus gray
Article number: 49347/2M
Price on demand
Connecting cable Woertz, with plug 2-pole C Woertz- grey, with 2m cable,
2x0.5mm² (1x2x0,8mm), Bus, 50V, 3A, halogen-free, cable gray, with free
end, fire behaviour class: Cca s1 d1 a1, IP20
| Base Unit | Piece |
| Dimensions length x width x height (mm) | 2000 x 14.8 x 11.8 mm |
| availability | Delivery in 4 weeks |
| Number of poles | 2 pole |
| Weight | 55,400 g |
| Color | gray |
| Coding plug connection | Code Woertz |
| Construction | 2x0.5 mm² |
| Cable length (m) | 2 m |
| Halogen free | Yes |
| Reaction to fire classification | Dca s1 d2 a1 |
| Sheath color | Gray |
Tender text
Connecting cable Woertz C Woertz-M 2x0.5² 2m, halogen-free Bus gray (49347/2M): Connecting cable Woertz, with plug 2-pole C Woertz- grey, with 2m cable,
2x0.5mm² (1x2x0,8mm), Bus, 50V, 3A, halogen-free, cable gray, with free
end, fire behaviour class: Cca s1 d1 a1, IP20
Copy
| Dimensions length x width x height (mm) | 2000 x 14.8 x 11.8 mm |
| Dimensions length x width x height (inch) | 79 x 0.58 x 0.49 inch |
| Degree of protection | IP20 |
| Number of poles | 2 pole |
| Material | Polyamide |
| Construction | 2x0.5 mm² |
| Rated current heavy current part (A) | 3 A |
| Rated voltage heavy current part (V) | 50 V |
| Cable length (m) | 2 m |
| Halogen free | Yes |
| Cable type | Halogen free cables |
| Reaction to fire classification | Dca s1 d2 a1 |
| Cross section -BUS (mm²) | 0,5 mm² |
| BUS-Copper conductor | Copper wire 0.8 mm |
| BUS-Cores insulation | Polyethylene |
| BUS-Cores colors | White, Blue |
| BUS-Screen | Aluminum foil |
| Sheat insulation | Polyolefin flame retardant |
| Sheath color | Gray |
| Minimum bending radius | 6xD |
| Operating Temperature | -20 till 70 °C |
| Installation temperature min. | 5 °C |
| BUS-Rated voltage (V) | 50 V |
| Halogen free acc. to | IEC/EN60754-1/2 |
| Flame retardant according to | IEC/EN60332-1-2 |
| Minimal smoke emision acc. to | IEC/EN 61034-2 |
This product is a member of the following product systems
5050
BUS connectors code Woertz, code KNX, code 3.
