Connection Box IP68 for FC E90 5G16mm² M25 Ø16-20.5mm

Connection Box IP68 for FC E90 5G16mm² M25 Ø16-20.5mm

Article number: 48955/02

Price on demand

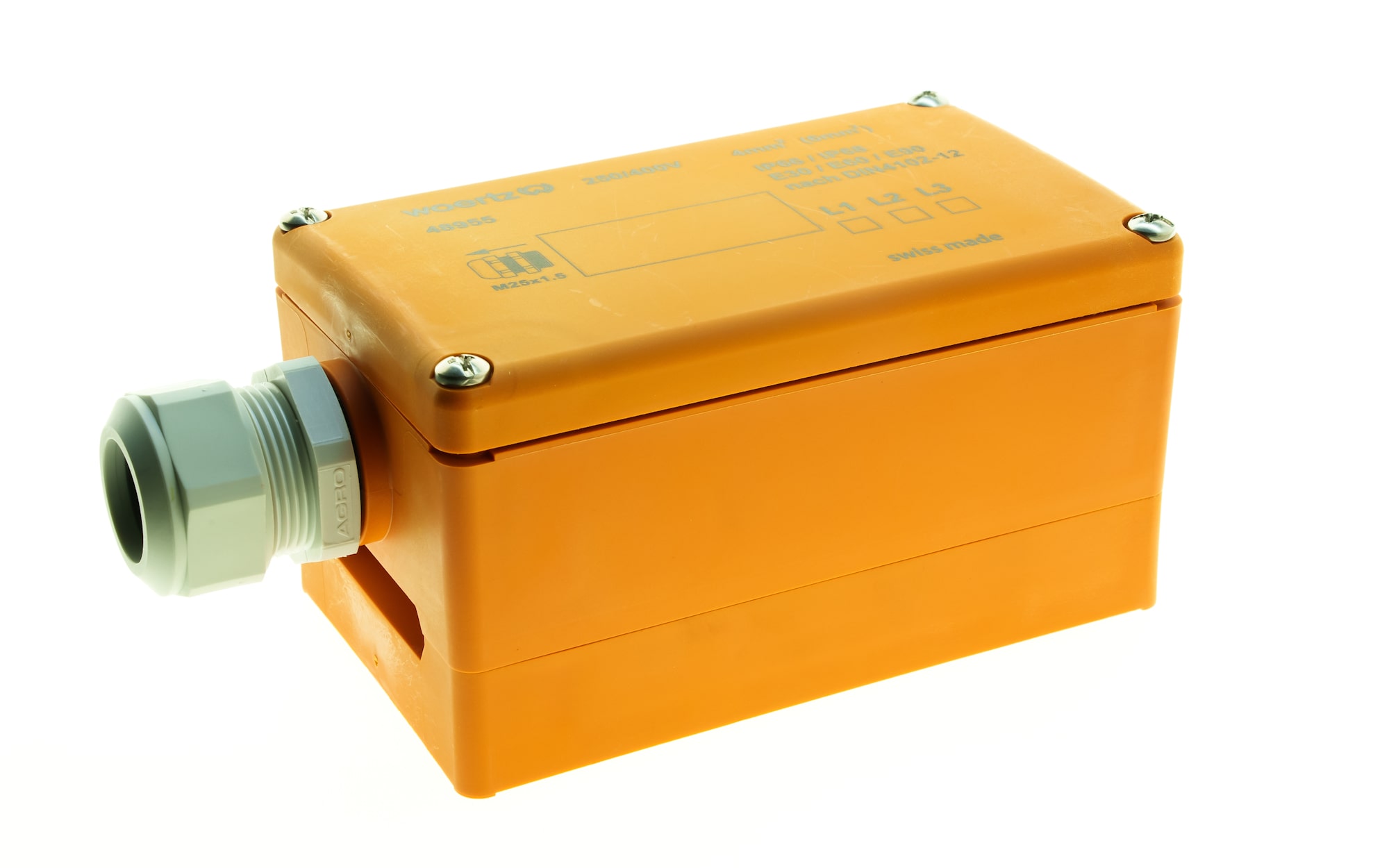

Connection Box for supply or branching-Fire protection box E90 Woertz IP66/ IP68, M25 Ø16-20.5mm, for cable up to 5x4(6)mm², for flat cable Woertz E90 5G16mm², halogen-free, corrosion-protected

Base Unit	Pieza
Dimensions length x width x height (mm)	146x85x77 mm
availability	Entrega por encargo
Number of poles	5 polos
Weight	946 g
Color	naranja

Tender text

Connection Box IP68 for FC E90 5G16mm² M25 Ø16-20.5mm (48955/02): Connection Box for supply or branching-Fire protection box E90 Woertz IP66/ IP68, M25 Ø16-20.5mm, for cable up to 5x4(6)mm², for flat cable Woertz E90 5G16mm², halogen-free, corrosion-protected

Copy

Product data sheet
48955-02 - Connection Box IP68 for FC E90 5G16mm² M25 Ø16-20.5mm.pdf

Files
Samsvarserklæring	EU - Konformität_Dose FK.pdf
Samsvarserklæring	rohs_and_reachV01.pdf

Characteristics
Base Unit	Stykke
availability	Levering etter avtale
EAN Code	7611718270031
group	0170000
Packaging unit	1 st
country of origin	CH
Customs tariff number	8536.9080
Weight	946 g
Color	oransje

Technical data
Dimensions length x width x height (mm)	146x85x77 mm
Dimensions length x width x height (inch)	5,74x3,34x3,03 inch
Degree of protection	IP66/IP68 (2m, 30min)
Metal parts	Metalen onderdelen: V4A / Contacteren: Cu-legering
Flat cable contacting type	Doordringend contact (schroef) EN 60998-2-3
Number of poles	5 pool
Contacting type	Schroefaansluiting
Connection conductor (mm²)	5x4,0 mm²
Thread cable gland	met wartel M25x1,5 (IP68) D= 16,0 mm - 20,5 mm
Cable gland (mm)	16,0-20,5 mm
Rated current heavy current part (A)	32 (4 mm²) A
Rated voltage heavy current part (V)	690 V
Operating Temperature	-15 tot 85 °C
Installation temperature min.	5 °C
Function maintenance	E30/E90 (DIN 4102-12)
Plastic parts	Halogeenvrij
Material slider/bottom part	Polyamide, oranje
Material housing	Polyamide, oranje
Material hood	Polyamide, oranje
Fire load (KWh)	2,35 kWh

Product accessories

Bevestigingsplaat inbus E90 48953/48955

Bevestigingsplaat voor vlakke kabelmof E90, gemaakt van chroomstaal V4A, met 116 mm bevestigingsafstand en gaten van 9,5 mm, voor montage van de aftakdoos Verdeeldoos 48953/48955.

Article number	48954
Base Unit	Piece
availability	Delivery according to agreement

Price on demand

This product is a member of the following product systems

FE180 E30/E90 5G16 mm²

3050

Woertz brandbeveiligingssysteem FE180 E30/E90 5G16 mm² voor de voeding van veiligheidsrelevante elementen, zoals nood- en vluchtwegverlichting, rookafvoersystemen of brandweerliften.
