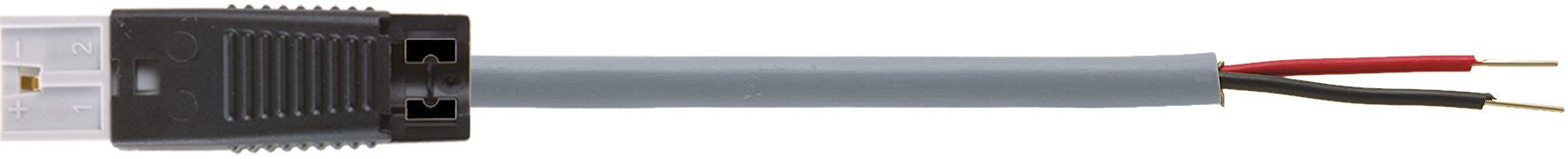

Pre-wired connector BUS CW-M 2x0.5mm² 3 m HF

Pre-wired connector BUS CW-M 2x0.5mm² 3 m HF

Article number: 49347/3M
Price on demand
Connection cable, halogen-free, 3 meters, pre-confection with 1x plug 2-pole, code Woertz, gray
Base Unit Piece
Dimensions length x width x height (mm) 3000 x 14.8 x 11.8 mm
availability Delivery according to agreement
Number of poles 2 pole
Weight (g) 80.9 g
Color gray
Coding plug connection Code Woertz
Construction (mm²) 2x0.5 mm²
Cable length (m) 3 m
Halogen free Yes
Reaction to fire classification Dca s1 d2 a1
Sheath color Gray
Tender text
Pre-wired connector BUS CW-M 2x0.5mm² 3 m HF (49347/3M):
Copy
Characteristics
Base Unit Piece
availability Delivery according to agreement
EAN Code 7611718270123
group 170000
Packaging unit 1
country of origin CH
Customs tariff number 8544.4229
Weight (g) 80.9 g
Color gray
Connector type Connecting cable plug
Coding plug connection Code Woertz
Technical data
Dimensions length x width x height (mm) 3000 x 14.8 x 11.8 mm
Dimensions length x width x height (inch) 118 x 0.58 x 0.49 inch
Degree of protection IP20
Number of poles 2 pole
Material Polyamide
Construction (mm²) 2x0.5 mm²
Rated current heavy current part (A) 3 A
Rated voltage heavy current part (V) 50 V
Cable length (m) 3 m
Halogen free Yes
Cable type Halogen free cables
Reaction to fire classification Dca s1 d2 a1
Cross section -BUS (mm²) 0,5 mm²
BUS-Copper conductor Copper wire 0.8 mm
BUS-Cores insulation Polyethylene
BUS-Cores colors White, Blue
BUS-Screen Aluminum foil
Sheat insulation Polyolefin flame retardant
Sheath color Gray
Minimum bending radius 6xD
Operating Temperature (°C) -20 till 70 °C
Installation temperature min. (°C) 5 °C
BUS-Rated voltage (V) 50 V
Halogen free acc. to IEC/EN60754-1/2
Flame retardant according to IEC/EN60332-1-2
Minimal smoke emision acc. to IEC/EN 61034-2

This product is a member of the following product systems


Suitable BUS connectors and connecting cables for the following systems:

  • Data 2x1.5 mm²
  • Combi 5G2.5 mm²
  • Combi 5G2.5 mm² KNX
  • Dali 3G2.5 2x1.5 mm²
  • Dali 5G2.5 2x1.5 mm²
5050
BUS connectors code Woertz, code KNX, code 3.
